American StandardSKU: 1235381

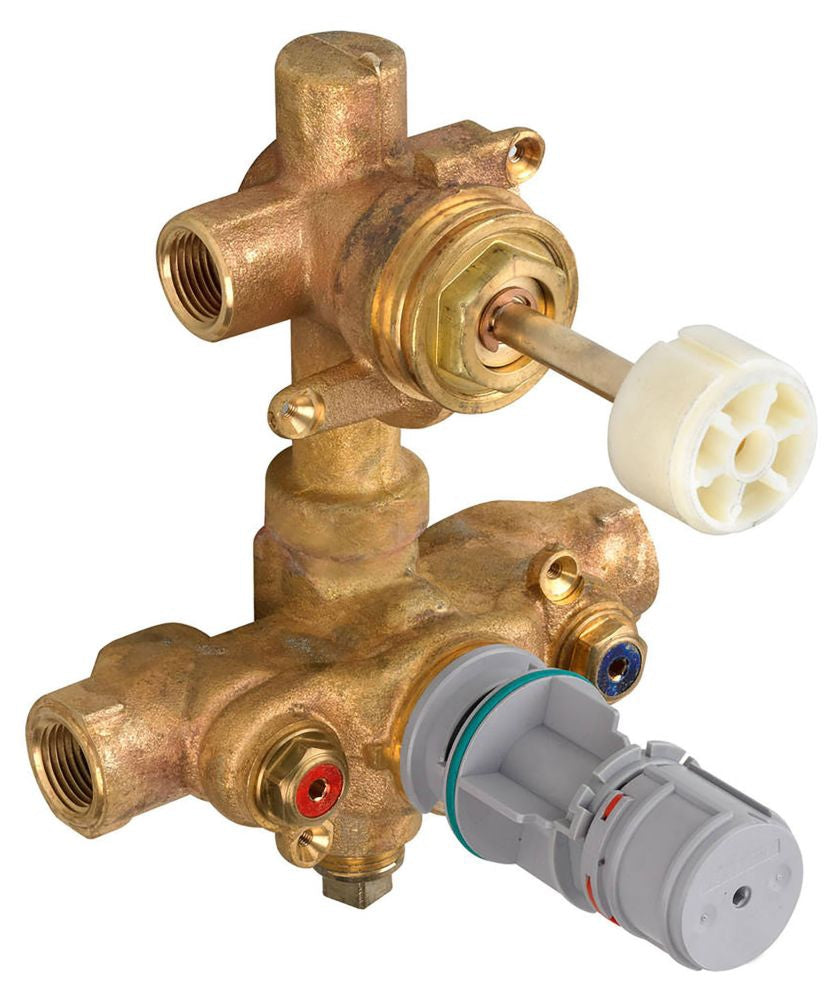

American Standard R522S Rough Valve

$195.75
In stock (20)

This thermostat lets you set a fixed water temperature for your shower and easily switch between two different shower outlets. It features an adjustable hot limit safety stop to help prevent accidental scalding. The American Standard R522S Rough Valve includes an elbow inlet connection and a cold expansion PEX outlet, functioning as a two-handle thermo rough valve with a two-way diverter designed for shared use.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Built-in diverter allows the user to choose between two and three separate outlets
  • Wax thermostatic unit to maintain pre-selected constant water temperature
  • Back-to-back capability hot and cold can be reversed quickly and easily
  • Spring loaded check valves prevents the cross flow of hot and cold water
  • Integrated stop valves ensure easy cleaning and servicing - adjustable hot limit safety stop reduces the risk of accidental scalding
  • max water temperature limit may be reduced to 104 or 109 deg F
  • Without trim
  • Two discrete/one shared functions
  • Maximum water temperature limit may be reduced to 104 or 109 deg F
  • Adjustable hot limit safety stop reduces the risk of accidental scalding
  • Wax thermostatic unit maintains the pre-selected constant water temperature
  • Compatible with - Town Square® shower trim kit, serin shower trim kit, green tea shower trim kit, times square shower trim kit, moments shower trim kit, Berwick® shower trim kit, Portsmouth® shower trim kit, Quentin™ shower trim kit
Specifications
Manufacturer Part Number R522S
UPC 12611580475
Overall Dimensions n/a
Material n/a
Domestic or Import Import
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals ADA Compliant | ANSI A117.1 | ASME A112.18.1 | ASSE 1016 | CSA B125.1
