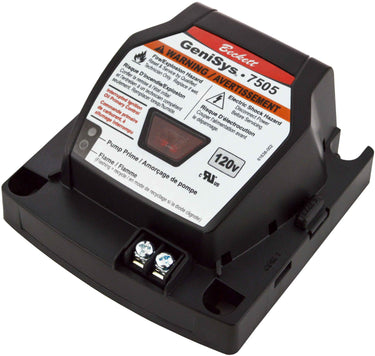

Beckett 7505B1500U GeniSys 120V Oil Burner Control
The Beckett GeniSys 7505 Oil Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys 7505 is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It has 24 VAC thermostat terminals compatible with both mechanical and many power stealing thermostats. It can provide interrupted or intermittent duty ignition, and it has a 15 second lockout time.
Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.
More Details
Product overview
Specifications
| Manufacturer Part Number | |
|---|---|
| UPC | |
| Overall Dimensions | n/a |
| Material | n/a |
| Domestic or Import | n/a |
| End Style | n/a |
| Type | n/a |
| ADA Compliance | n/a |
