BeckettSKU: 778494

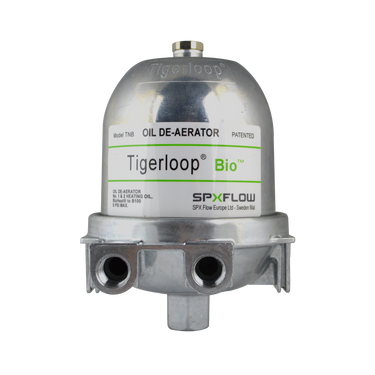

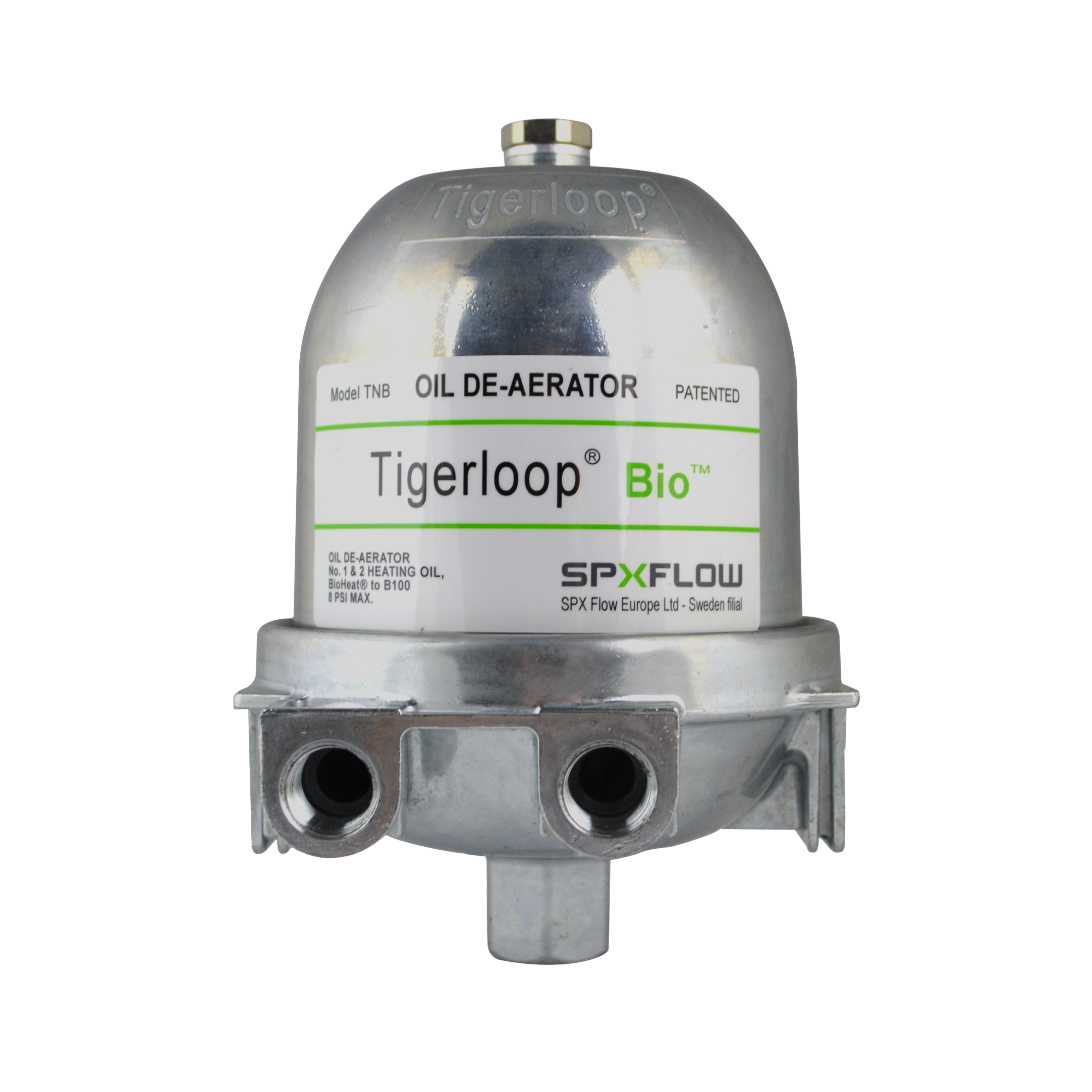

Tigerloop® S220-1 Bio-Fuel Rated Oil Deaerator

$148.24
In stock (66)

The Tigerloop® Bio Oil Deaerator optimizes the performance and longevity of oil heating systems by combining the advantages of single-pipe and two-pipe setups. Compatible with both standard heating oils and 100% biodiesel (B100), it delivers efficient oil delivery by transporting fuel at the nozzle firing rate of 1 gallon per hour. This design requires only a single small-diameter line from the tank to the Tigerloop, unlike traditional two-pipe systems that need two large lines capable of handling oil flow rates up to 20 gallons per hour in both directions.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Reduces air in the system by up to 95%
  • Reduces running vacuum
  • Significantly reduces potential leak hazard
  • Conditions oil for cleaner combustion
  • Reduces lockouts, flameouts, and sputters
  • Extends filter element life
  • Maximum Nozzle Capacity: 29.0 GPH
  • Maximum Return Oil Flow: 31.7 GPH
  • Temperature Range: 20˚ F — 105˚ F
  • Maximum Inlet Pressure: 8 PSI
  • Connections: 1/4″ – NPT (female)
  • Fuel: No. 1 & 2 Heating Oil, BioFuels up to B100 BioHeat®
Specifications
Manufacturer Part Number S220-1
UPC n/a
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals n/a
