Bell & GossettSKU: 37759

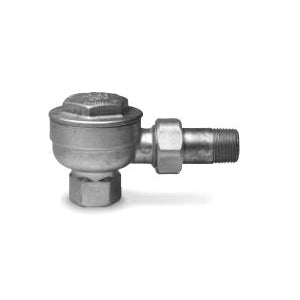

Bell & Gossett 401536 Angle Thermostatic Steam Trap

$166.17
In stock (31)

Bell & Gossett Thermostatic Steam Trap, Angle, Model 17C-A 2-25, 1/2 in Nominal Size, NPT, 25 psi, Brass

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Thermostatic traps are normally open allowing fast venting of air during start-up
  • During start-up, cold condensate drains through the trap, as temperatures reach 10 to 30 deg F of saturation, the thermostatic bellows element closes the trap
  • During operation, thermostatic traps find an equilibrium point to drain condensate approximately 10 deg to 30 deg F below saturation at continuous flow
  • Sub-cools condensate usually 10 deg to 30 deg F
  • Normally open at start-up to provide fast air venting
  • Follows steam saturation curve to operate over wide range of conditions
  • Self-draining
  • Energy efficient
  • Fast response to changing conditions
  • Fail mode is open
  • Water hammer can damage bellows
  • Superheat can damage bellows if it exceeds trap temperature rating
  • Cooling leg required in some applications
  • Brass bodies provide resistance to moderate water hammer and chemical attack
  • Stainless steel Dura-Stata modules are easily replaced without disturbing piping connections
  • Compact size reduces installation space requirements
  • Inexpensive purchase price
  • Range of seat pressures available up to 125 psig
  • Balanced pressure
  • Model 17C-A 2-25
Specifications
Manufacturer Part Number 401536
UPC 751875018651
Overall Dimensions 4-1/2 in L x 3-1/2 in W
Material n/a
Domestic or Import n/a
End Style n/a
Type Angle
ADA Compliance n/a
