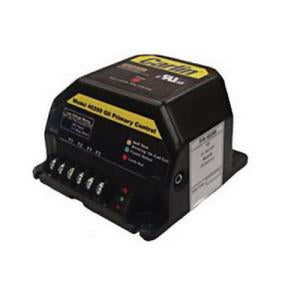

Carlin 4223002S Cad Cell Relay Control

The Carlin 42230 is an advanced recycle-type electronic control designed for direct mounting on standard flame retention oil burners, providing interrupted duty operation with enhanced reliability features. The unit incorporates improved SMC technology with zero bleed voltage during standby, oil pump bleed assistance up to one minute, and comprehensive diagnostic LEDs for status, lockout, and flame indication. Key safety features include automatic recycle on flame failure, serviceman reset protection after three consecutive lockouts, and increased flame accuracy with stabilization technology. The control is compatible with standard thermostats and aquastats while offering superior generator compatibility through frequency change insensitivity. Operating on 120 VAC, 60 Hz with 10 VA consumption, it handles 500 VA ignitor loads and motor loads up to 10 FLA/60 LRA, with cadmium cell flame detection requiring less than 1500 ohms resistance. UL recognized for US and Canadian installations with operating temperature range of +32°F to +140°F, oil control
