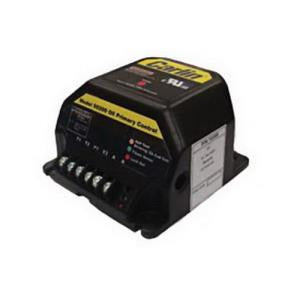

Carlin 5020002S Cad Cell Relay Control
This interrupted duty primary control features advanced Safety Monitoring Circuit (SMC) technology with intelligent flame failure management, including automatic recycle capability and serviceman reset protection that latches after three consecutive lockouts. The unit provides comprehensive diagnostics through integrated LED indicators, 15-second trial for ignition period, and rapid 1.3-second flame failure response time with alarm contact output capability. Compatible with standard thermostats and aquastats, the control operates on 120 VAC, 60 Hz with 9 VA power consumption and handles motor loads up to 10 FLA/60 LRA plus 500 VA ignitor loads. Operating temperature range spans +32°F to +140°F with cadmium cell flame detection requiring less than 1500 ohms resistance, making it suitable for residential and commercial oil-fired heating applications requiring reliable safety monitoring and diagnostic capabilities.
Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.
More Details
Product overview
Specifications
| Manufacturer Part Number | |
|---|---|
| UPC | |
| Overall Dimensions | n/a |
| Material | n/a |
| Domestic or Import | n/a |
| End Style | n/a |
| Type | n/a |
| ADA Compliance | n/a |
