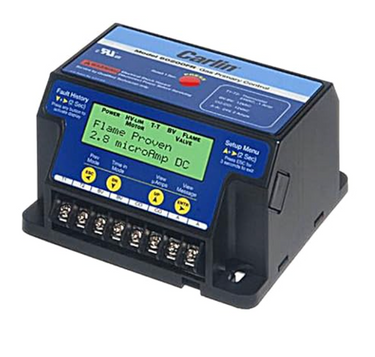

Carlin 60200FRS Gas Burner Primary Control with LED Screen

The Carlin 60200FRS is a flame rod microprocessor primary control built for EZ-Gas and other Carlin residential and commercial gas burners. A built-in LED screen displays the current ignition stage with a countdown timer, making setup and troubleshooting faster on the job.

• Programmable timing — 4-second trial for ignition (TFI), selectable pre-purge (0, 10, 30, or 90 sec) and post-purge (0, 10, 15, 30, 60, or 120 sec)
• Interrupted duty ignition with a 2-second ignition establishment period
• 1.3-second flame failure response time (FFRT) with Safety Monitoring Circuit (SMC) technology
• Serviceman reset protection — latches out after three consecutive lockouts
• Diagnostic and flame indicator LEDs plus alarm contacts for fast fault identification
• UL recognized (US), CUL recognized (Canada)

Specs: 120 VAC · 60 Hz · 9 VA power input · Motor load 10 FLA / 60 LRA · Valve load 2.0A · Alarm contacts 24V AC/DC, 2A · Operating temp +32°F to +140°F

For licensed HVAC service technicians only. Install per local code and the manufacturer's wiring instructions.
