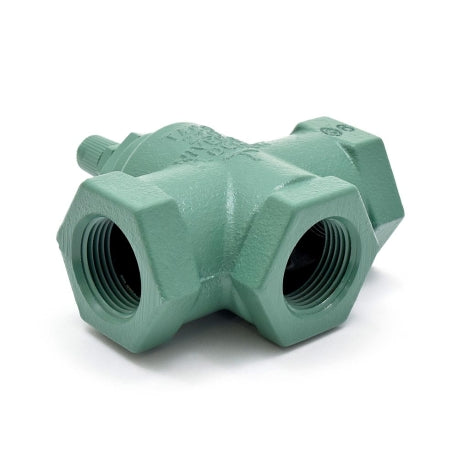

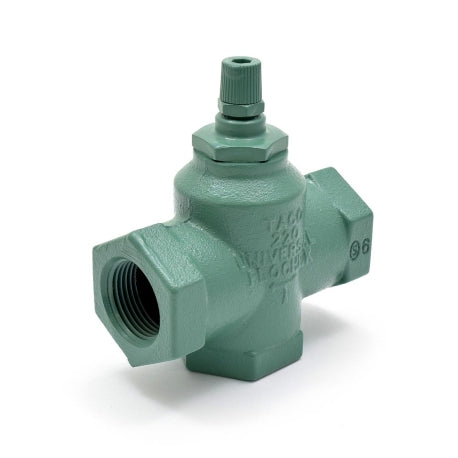

Taco® 220-6 220 Horizontal Hydronic Flo-Chek ValveTaco® 220-6 220 Horizontal Hydronic Flo-Chek Valve
Taco® 220-6 220 Horizontal Hydronic Flo-Chek Valve
TacoSKU: 39415

Taco® 220-6 220 Horizontal Hydronic Flo-Chek Valve

$74.01
In stock (12)

Taco®, 220-6, Hydronic Flo-Chek Valve, Horizontal, Series: 220, 1 in Nominal, FNPT End Style, 125 psi Pressure, 277 deg F, Media: Water/Glycol, Automatic Actuator, Cast Iron Body, 4-1/4 in W x 5 in H Dimensions, Domestic

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Flo-cheks open automatically when the circulator starts running
  • When the room thermostat is satisfied and the circulator is stopped
  • The flo-cheks close immediately, preventing gravity circulation
  • Gravity circulation of water is induced by the difference in specific weight or density of the hot water in the vertical supply pipe and the cold water in the vertical return pipe
  • The lighter hot supply side water, which naturally wants to rise, is drawn up and around the system by the pulling down effect of the heavier cold water in the vertical return pipe
  • The amount of gravity circulation is dependent on the height of the system and the differential between the hot and cold temperatures
  • In systems with multiple zones, ghost flow may occur if a Flo-Chek is not installed on each zone
  • Ghost flow is induced when a circulator on one zone is running but is still able to bypass water through a zone that is not calling, due to a differential in piping resistance between the two zones
  • Cast iron construction for durability
  • 125 max pressure psi
  • Thumb screw allows manual operation in the event that your system's main circulator stops running
  • Prevents gravity circulation in a forced water heating system
  • For multi circulator systems Flo-Checks allow flow only into zones calling for heat
  • Improves boiler efficiency
  • Automatically opens and closes when your circulator activates and deactivates for simple operation
  • Universal thread design provides for compatibility with most forced hot water heaters
  • 277 deg F Max temperature range
Specifications
Manufacturer Part Number 220-6
UPC 687752202045
Overall Dimensions 4-7/8 in W
Material n/a
Domestic or Import Domestic
End Style n/a
Type Horizontal
ADA Compliance n/a
Warning n/a
Standards and Approvals n/a
