DanfossSKU: 36978

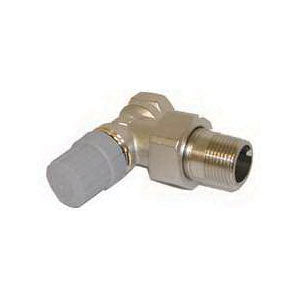

Danfoss 013G8019 RA 2000 Angle Thermostatic Radiator Valve

$83.40
In stock (12)

RA 2000 Thermostatic Radiator Valves regulate the flow of hot water or low pressure steam through free-standing radiators, baseboards or convectors in hot water and two-pipe steam systems. Operators and valves are packaged separately to allow an installer to select a suitable combination for each application.

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Valve bodies are designed to meet the demands of the residential, commercial and industrial sectors
  • 140 deg F max sensor temperature
  • 15 psi maximum differential pressure (water)
  • 45 to 86 deg F adjustable temperature range
  • RA 2000 valves are fitted with a packing gland assembly that is replaceable while the system is in operation
  • Sturdy EPDM rubber valve disc provides a seal against the valve seat at differential pressures of up to 15 PSI in hot water heating systems, while 15 psig for low pressure steam systems
  • Manual plastic cap supplied to protect the valve pushpin and provide manual control of the valve during installation
  • If manual operation is required, a separate version of manual knob is available
  • Valves remain normally open with no operator mounted
  • 2.7 CV
  • FPT x MPT union tailpiece connection
Specifications
Manufacturer Part Number 013G8019
UPC 66278234128
Overall Dimensions 11 in L x 5 in W x7 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type Angle
ADA Compliance n/a
