MarsSKU: 1423395

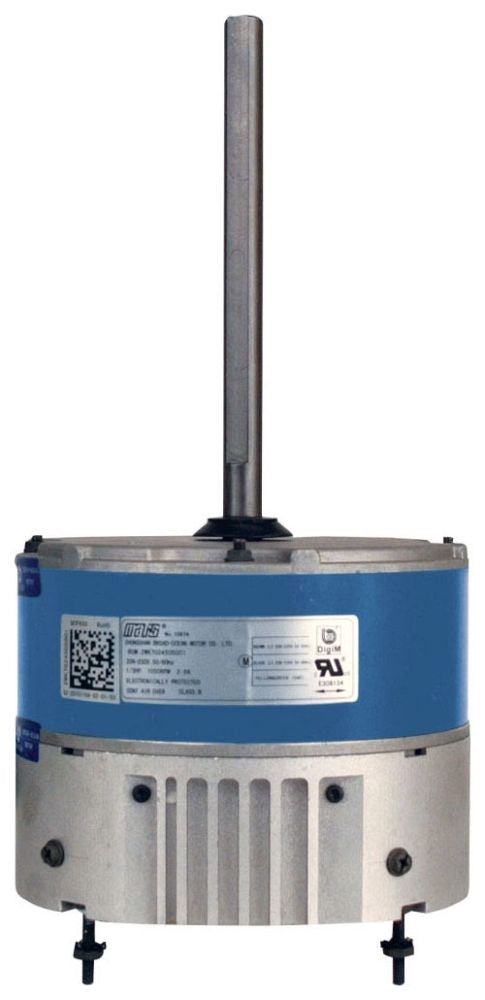

Azure® by Mars® Digi-Motor® 10874 Condenser Fan Motor

$220.73
Low Stock (3)

Replace multiple PSC condenser fan motors with one smart ECM. The Azure® Digi-Motor® covers a wide range of applications in a single unit, making it a go-to solution for HVAC service techs who want to simplify their truck stock.

Easy Setup – No Capacitor Needed

Wires up just like a standard PSC condenser fan motor, but without the capacitor. Plug the motor into a 115V power source using the supplied programming cable, pick one of four operating modes, and install:

  • 1075 RPM CW (Lead End) – Factory Default
  • 1075 RPM CCW (Lead End)
  • 825 RPM CW (Lead End)
  • 825 RPM CCW (Lead End)

Built-In Surge Protection

Unlike other ECM motors, the Azure® comes with a replaceable outboard surge protector on the wiring harness. If a power surge hits, swap the protector instead of the whole motor — a much cheaper fix.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • High efficiency ECM technology
  • No capacitor required
  • Water slinger on shaft
  • Multi-horsepower self-adjusting
  • 1/3 HP, 208-230 VAC, 50/60 Hz, 1 phase
  • 825/1075 RPM, CW/CCW rotation
  • 48 frame
  • 1/2" x 6-1/2" shaft, ball bearings, stud mount
  • Air-over enclosure, Class B insulation
  • Operating range: -32 to 55°C
Specifications
Manufacturer Part Number 10874
UPC 685744108740
Overall Dimensions 5-1/2" dia
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals n/a
