Field ControlsSKU: 191338

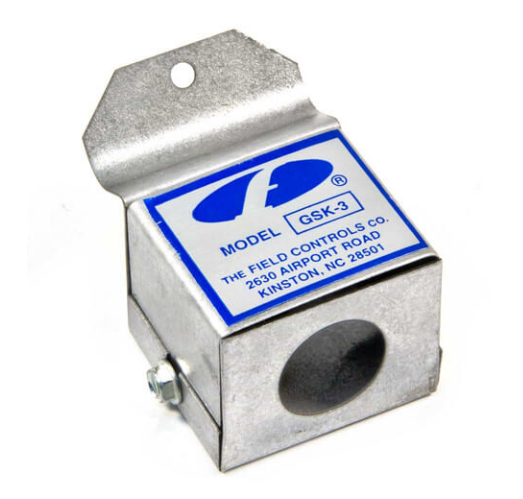

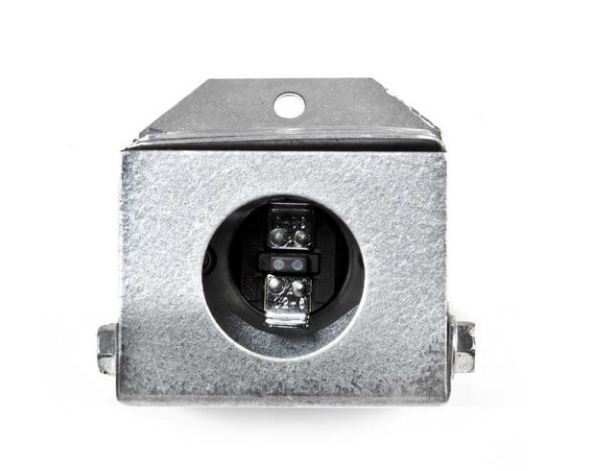

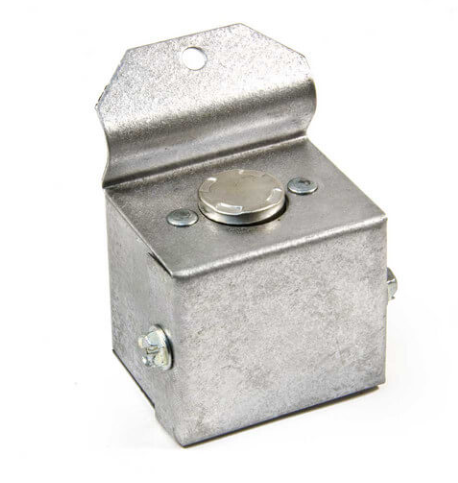

Field Controls GSK-3 (46086400) Gas Spillage Switch, 180°F Manual Reset, Millivolt or 24 VAC

$52.21
In stock (7)

The GSK-3 detects flue gas spilling out of a draft hood or draft control and shuts down the gas burner. It opens at 180°F and stays open until someone presses the reset, so a blocked or backdrafting chimney can't go unnoticed. It works on millivolt and 24 VAC systems and mounts below a draft hood opening or along the bottom edge of an MG1 draft control (4 to 9 in.).

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays. Upcoming Closures: 11/26 and 11/27

More Details

Product overview
  • Part number: 46086400
  • Opens at 180°F; manual reset
  • Switch: SPST normally closed, gold contacts, 24 VA
  • For gas-fired millivolt or 24 VAC appliances
  • Mounts on draft hoods or MG1 draft controls
  • Mounting screw supplied; wire and TCA-1 junction block not included
Specifications
Manufacturer Part Number GSK-3
UPC n/a
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals n/a
