ResideoSKU: 58059

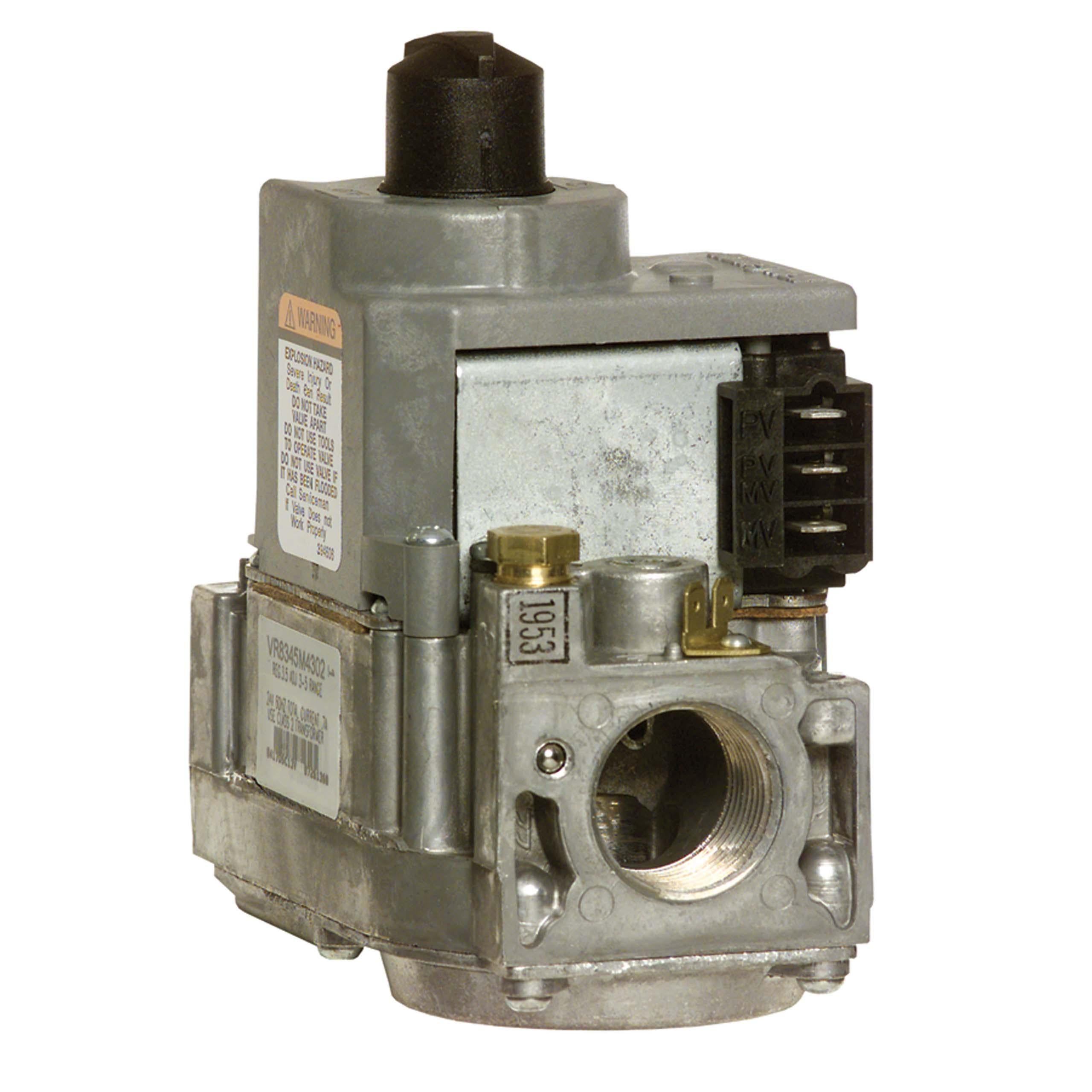

Resideo VR8345M4302/U 1-Stage Gas Valve

$169.65
In stock (6)

Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 Vac, gas-fired appliances, with capacities of 30 to 415 cfh. Control includes manual valve,

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter
  • Replaces many IP, HSI, or DSI gas control
  • Compact size
  • All adjustments and wiring connections accessible from top of control
  • Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules
  • Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper
  • Internal inlet screen blocks contaminants in gas line from entering valve
Specifications
Manufacturer Part Number VR8345M4302/U
UPC 85267780117
Overall Dimensions 4 in H x 3-23/32 in W x 2-3/8 in D
Material n/a
Domestic or Import Import
End Style n/a
Type 1-Stage
ADA Compliance n/a
