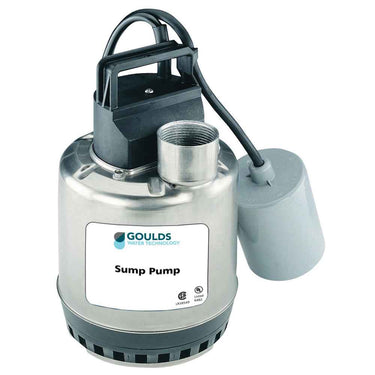

Goulds LSP0311AT Submersible Sump PumpGoulds LSP0311AT Submersible Sump Pump
Goulds LSP0311AT Submersible Sump Pump
GouldsSKU: 46258

Goulds LSP0311AT Submersible Sump Pump

$376.30
In stock (19)

The Goulds LSP0311AT delivers reliable sump pump performance with a 1/3 hp motor rated for 57 gpm output and 34 ft maximum head capacity. This single-phase unit operates at 115 VAC, 60 Hz with a 3450 rpm motor and draws 2.9 A during operation. The pump features a durable glass-filled thermoplastic impeller, heavy-duty ball bearings, and cast iron construction for extended service life. The 1-1/2 in NPT outlet accommodates standard discharge piping, while the 104°F temperature rating suits typical basement and crawlspace applications. Built for dependable submersible operation in sump pit installations.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • 1/3 HP, 115 VAC, 60 Hz, 1-phase, 2.9A; 3,450 rpm motor — rated for continuous operation
  • 57 gpm flow rate; 34 ft maximum head; 1-1/2 in. NPT discharge; handles up to 3/8 in. spherical solids
  • Piggyback wide-angle float switch — 11 in. on / 5 in. off levels; adjustable for various liquid levels; easily removed for direct pump operation or switch replacement without disturbing installation; minimum 12 in. basin diameter
  • Double labyrinth lip seal system — three lip seals plus a V-ring with impeller counter-blade system to keep solid particles away from the seal unit
  • Stainless steel motor casing, shaft, and fasteners; glass-filled thermoplastic impeller and pump casing
  • Upper and lower heavy-duty ball bearings; permanently lubricated motor for extended service life
  • Maximum liquid temperature: 104°F (40°C); maximum submergence: 10 ft.
  • Lightweight and portable; easy field serviceability
  • UL Listed (File #83318); CSA Certified (File #LR114251)
  • 3-year standard warranty (4-year with GPDA registration)
  • Professional installation required
Specifications
Manufacturer Part Number LSP0311AT
UPC 697666182395
Overall Dimensions 6-1/8 in Dia x 12 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals CSA No LR114251 | UL No 83318
