HoneywellSKU: 38171

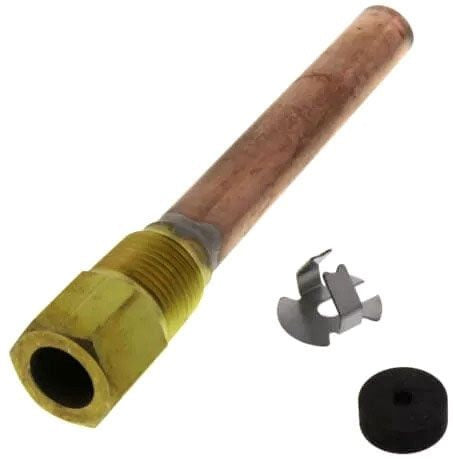

Honeywell 112630AA/U Well Assembly

$150.88 Sold out

Immersion wells, compression fittings and element holders are used with Aquastat® Temperature Controllers to hold the temperature sensing bulb in the controlled medium. Immersion wells and compression fittings also prevent leakage of the controlled medium.

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Immersion wells and compression fittings are available to fit a 1/2-14 or 3/4-14 NPT tapping with a range of insulation depths
  • Immersion wells and compression fittings are available in a variety of lengths and dia
  • Immersion wells and compression fittings are available in a variety of materials, to suit the application
  • Materials include - brass, copper, stainless steel, mild steel or monel
  • Element holders support the capillary and bulb or an averaging element in duct applications
  • Bulb shields protect the sensing bulb from sun and weather with the bulb installed outdoors
  • Accessories, including mounting clips, heat conductive compounds, waste nuts, a pipe strap and a well adapter are available for mounting sensing bulbs in various applications
  • Immersion wells allow heat transfer while protecting the sensing bulb from contact with the controlled medium
  • Immersion wells permit removal of the sensing bulb for testing or replacement without draining the system
  • Compression fittings seal the boiler and allow bulb insertion directly into the controlled medium
  • 1/2 in dia and 4-1/4 in insertion
Specifications
Manufacturer Part Number 112630AA/U
UPC 85267003988
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
