Bell & Gossett 102210 3-Piece Booster PumpBell & Gossett 102210 3-Piece Booster Pump
Bell & Gossett 102210 3-Piece Booster PumpBell & Gossett 102210 3-Piece Booster Pump
Bell & Gossett 102210 3-Piece Booster Pump
Bell & Gossett 102210 3-Piece Booster Pump
Bell & GossettSKU: 36706

Bell & Gossett 102210 3-Piece Booster Pump

$1,316.29
Low Stock (3)

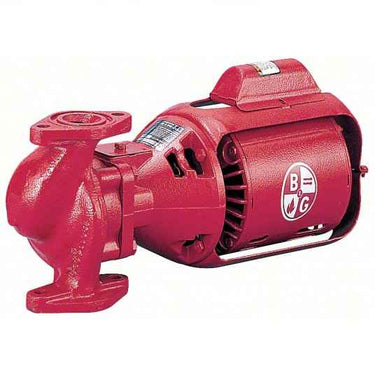

The Bell & Gossett 3-Piece Booster Pump features a 1/6 hp motor operating at 115 VAC and 1.9 A with a frequency of 60 Hz. Designed for durability and ease of maintenance, its three-piece construction allows for full field repairability while maintaining a compact size. With a maximum pressure of 125 psi and a centrifugal impeller driven at 1725 rpm, this pump ensures reliable performance. Equipped with a Bell & Gossett-manufactured motor and sleeve bearings, it delivers quiet, efficient operation even at temperatures up to 225°F.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Oil lubricated circulator
  • Cast iron body
  • 115 V with built-in overload protection
  • Sleeve bearing, oil lubricated with replaceable resilient motor mounts
  • Noise dampening coupler
  • Bell & Gossetts own flexible spring design adds to quiet operation, do not accept a substitute
  • Long bronze sleeve bearings maintain exact shaft alignment
  • Provides for constant circulation of oil over bearing surfaces
  • Precision ground pump shaft is oversized to provide large bearing surfaces
  • Hardened integral thrust collar minimizes end-thrust to ensure long seal and bearing life
  • The Bell & Gossett standard mechanical seal is designed to withstand the wide range of water temperatures, pressures, additives and dissolved solids common in hydronic systems
  • Centrifugal impeller prevents accumulation of air at seal faces to assure long life
  • Close impeller/body tolerances minimize water slippage and maximize efficiency
  • 3/4, 1-1/4 and 1-1/2 in NPT flange
  • Steel, Zinc Plated or Lead-Free Brass impeller
  • Drip proof motors
  • Recommended for indoor use only
  • Model HV NFI
Specifications
Manufacturer Part Number 102210
UPC 683328022109
Overall Dimensions 15-3/8 in L x 8-1/2 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type 3-Piece
ADA Compliance n/a
Warning n/a
Standards and Approvals CSA Certified | cUL/UL Listed | SA Registered
