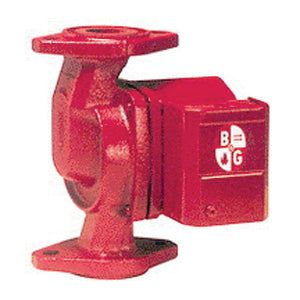

Bell & Gossett 103417 NRF 3-Speed Wet Rotor Circulator PumpBell & Gossett 103417 NRF 3-Speed Wet Rotor Circulator Pump
Bell & Gossett 103417 NRF 3-Speed Wet Rotor Circulator Pump
Bell & GossettSKU: 650751

Bell & Gossett 103417 NRF 3-Speed Wet Rotor Circulator Pump

$210.70
In stock (16)

Bell & Gossett Wet Rotor Circulator Pump, 3-Speed, Series: NRF, 24 gpm, 19 ft Maximum Head, 125 W, 115 VAC, 1.1 A, 60 Hz, 1 ph, 150 psi Maximum, 2950 rpm Motor, In-Line Mount, 225 deg F, 5-1/8 in W x 6-3/16 in D x 4-7/8 in H

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • High starting torque for dependable seasonal start-ups (Up to 80% more than competing circulators)
  • Unique B and G DuraGlide bearing system assures years of trouble-free start-ups
  • Closed impeller design improves operating efficiency
  • Backed by B and G's representatives and a 3-year warranty-the best in the business
  • DuraGlide bearing system incorporates several components working together to eliminate seasonal freeze-up
  • Stabilized, heat resistant, polypropylene impeller, its closed design improves operating efficiency
  • Self-cleaning particle shield protects the shaft and bearings from system start-up debris
  • 1-piece, high-nickel stainless steel stator can isolates the stator from system fluid and maintains precision bearing alignment for longer bearing life
  • Carbon bearings, diamond-like ceramic shaft and generous clearances are more resistant to lime, chloride and oxide build-up
  • Face plate and rotor sleeve feature corrosion resistant stainless steel construction for longer life
  • 3/4, 1, 1-1/4 and 1-1/2 in NPT flange
  • Construction: cast iron pump body, Noryl impeller, ceramic shaft, carbon bearings
Specifications
Manufacturer Part Number 103417
UPC 683328219936
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type 3-Speed
ADA Compliance n/a
Warning n/a
Standards and Approvals cULus Listed | CSA Certified | UL Listed
