TacoSKU: 1788183

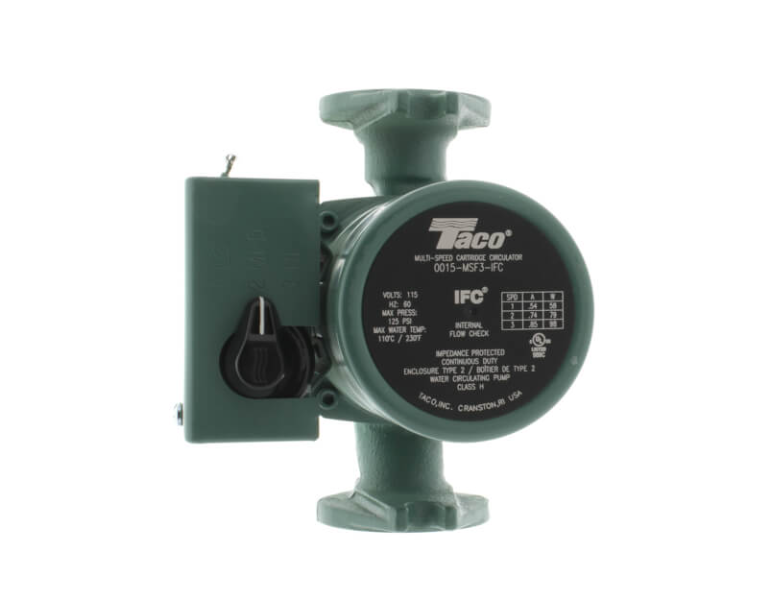

Taco® 0015-MSF3-1IFC 00 3 Speed Cast Iron Circulator with Integral Flow Check

$183.36
In stock (42)

Taco® 0015 3-Speed Cast Iron Circulator with Integral Flow Check (0015-MSF3-1IFC) — a versatile hydronic circulator built for radiant, high-head, and standard heating systems. The 3-speed switching lets you dial in the right flow for any combination of tube diameter and run length. Delivers the highest starting torque in its class and directly replaces the Grundfos UPS15-58.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • 0–18 gpm flow rate, up to 17 ft head
  • 1/20 hp, 115V/60 Hz, single phase
  • Flange mount with 3/4 to 1-1/2 in connections
  • Non-metallic impeller, carbon bearings
  • Operating range: 40–230°F, 125 psi max
  • Reduces installation costs
  • Quiet, efficient operation
  • Prevents gravity flow
  • Removable high-flow Integral Flow Check
  • Highest performance & starting torque in class
  • 3-Speed Switch
  • Wide range of applications
  • Drop-in replacement for most commonly used residential circulators
  • Heavy duty construction for longer life
  • Self-lubricating and No mechanical seal
  • Fine tune to system requirements
  • Improves pump performance
  • Rotated flange orientation
  • Unique, replaceable cartridge is field serviceable
Specifications
Manufacturer Part Number 0015-MSF3-1IFC
UPC 687752044744
Overall Dimensions 6-3/8 in H x 6 in W x 6 in L x 5-3/8 in D
Material n/a
Domestic or Import n/a
End Style n/a
Type 3 Speed Cast Iron
ADA Compliance n/a
Warning n/a
Standards and Approvals NSF Certified
