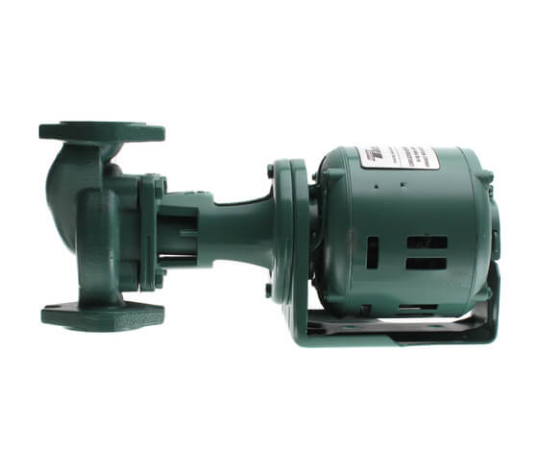

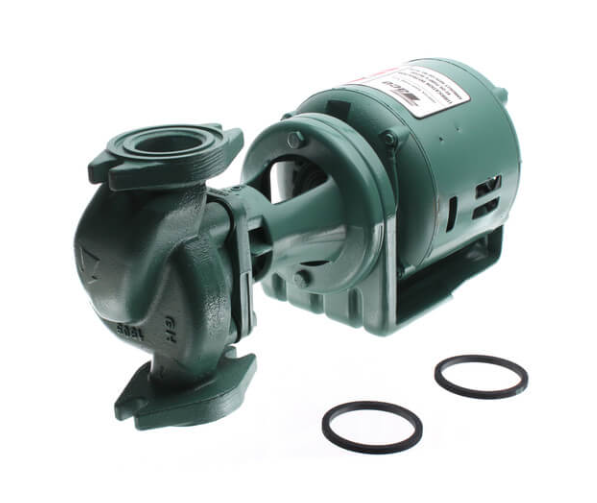

Taco® 110-24 110 Cast Iron 3-Piece CirculatorTaco® 110-24 110 Cast Iron 3-Piece Circulator
Taco® 110-24 110 Cast Iron 3-Piece CirculatorTaco® 110-24 110 Cast Iron 3-Piece Circulator
Taco® 110-24 110 Cast Iron 3-Piece CirculatorTaco® 110-24 110 Cast Iron 3-Piece Circulator
Taco® 110-24 110 Cast Iron 3-Piece Circulator
Taco® 110-24 110 Cast Iron 3-Piece Circulator
Taco® 110-24 110 Cast Iron 3-Piece Circulator
TacoSKU: 39374

Taco® 110-24 110 Cast Iron 3-Piece Circulator

$640.92
In stock (6)

The Taco 110-24 is a reliable, workhorse circulator built for residential and light commercial hydronic heating systems. This 3-piece cast iron circulator delivers up to 33 GPM with a maximum head of 7.5 feet, powered by a 1/6 HP, 115V single-phase motor running at 1725 RPM. The 3-piece design allows the wet end to be serviced without draining the system, and the non-metallic impeller resists corrosion for long service life. Compatible with 3/4", 1", 1-1/4", and 1-1/2" flanged connections, the 110-24 installs easily into a wide range of existing systems. Rated to 125 psi and 176°F for standard hydronic applications.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Rugged Motor Built to Last - Resilient mounted, split phase motor with built-in overload protector, equipped with sleeve bearings for quiet operation
  • Factory Tested - Every circulator is operated before shipment
  • 3-piece cast iron circulator — serviceable wet end design allows maintenance without draining the system; ideal for residential and light commercial hydronic heatin
  • Up to 33 GPM flow rate — 7.5 ft maximum head suits a wide range of forced hot water system configurations
  • Multi-size flange connections — compatible with 3/4", 1", 1-1/4", and 1-1/2" flanged inlets for flexible installation in new or replacement application
  • 1/6 HP, 115V single-phase motor — 1725 RPM, 60 Hz operation with open drip-proof enclosure and sleeve bearing for quiet, dependable performance
  • Non-metallic impeller — corrosion-resistant construction extends service life in hydronic systems
  • Rated to 125 psi and 176°F — handles standard residential and light commercial hydronic operating conditions
Specifications
Manufacturer Part Number 110-24
UPC 687752005547
Overall Dimensions 7-7/8 in H x 14-5/8 in W
Material n/a
Domestic or Import n/a
End Style n/a
Type Cast Iron
ADA Compliance n/a
Warning n/a
Standards and Approvals n/a
