Taco® LTA1203S-2 LT Series Low Water Cut-OffTaco® LTA1203S-2 LT Series Low Water Cut-Off

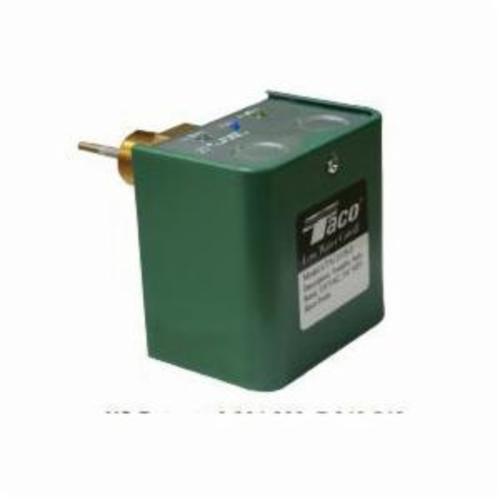

Taco® LTA1203S-2 LT Series Low Water Cut-Off
TacoSKU: 641719

Taco® LTA1203S-2 LT Series Low Water Cut-Off

$146.87
In stock (6)

Taco®, LTA1203S-2, Low Water Cut-Off, Series: LT Series, 120 VAC, 32 to 150 deg F, 250 psi Pressure, Automatic Reset, NPT Connection, 3/4 in Thread, 2.8 VA Power, 3 in Length, 3.66 in Width, 5.53 in Height

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Probe sensitivity - 20 kOhm, extended operation to 40 kOhm
  • 7.5 A full load
  • 43.2 A locked rotor
  • 125 VA pilot rating
  • 32 to 150 deg F ambient temperature
  • Enclosure rating - NEMA 1 for indoor use only
  • Automatic reset when water level returns to safe level
  • Integrated test switch for testing safety shutdown
  • External LEDs and simplified wiring for easy installation and testing
  • Worry Free Operation
  • Automatic or manual reset mode
  • Does not require periodic shutdown of the boiler to determine water level
  • Probe Style Low Water Cutoff
  • LED Verification
  • Seamless Integration
  • LED lights indicate low water condition
  • Standard on-board NEMA 1 or remote NEMA 4 probe 1/2 in or 3/4 in NPT connection
  • 0 seconds 15 seconds delay on make timer
  • 250 deg F max probe temp
  • Patented adjustable probe sensitivity
Specifications
Manufacturer Part Number LTA1203S-2
UPC 687752608151
Overall Dimensions 7-11/16 in
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals UL GUIDE (MBPR) for Limit Controls per UL Standard 353 Limit Controls | Limit Certified for Canada CSA Standard C22.2 | Fully meets installation requirements of CSD-1 for automatic controls | UL Listed | CSA Listed | NEMA Certified
