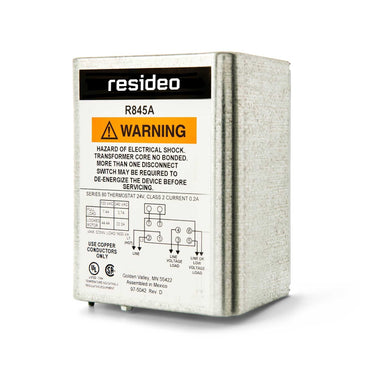

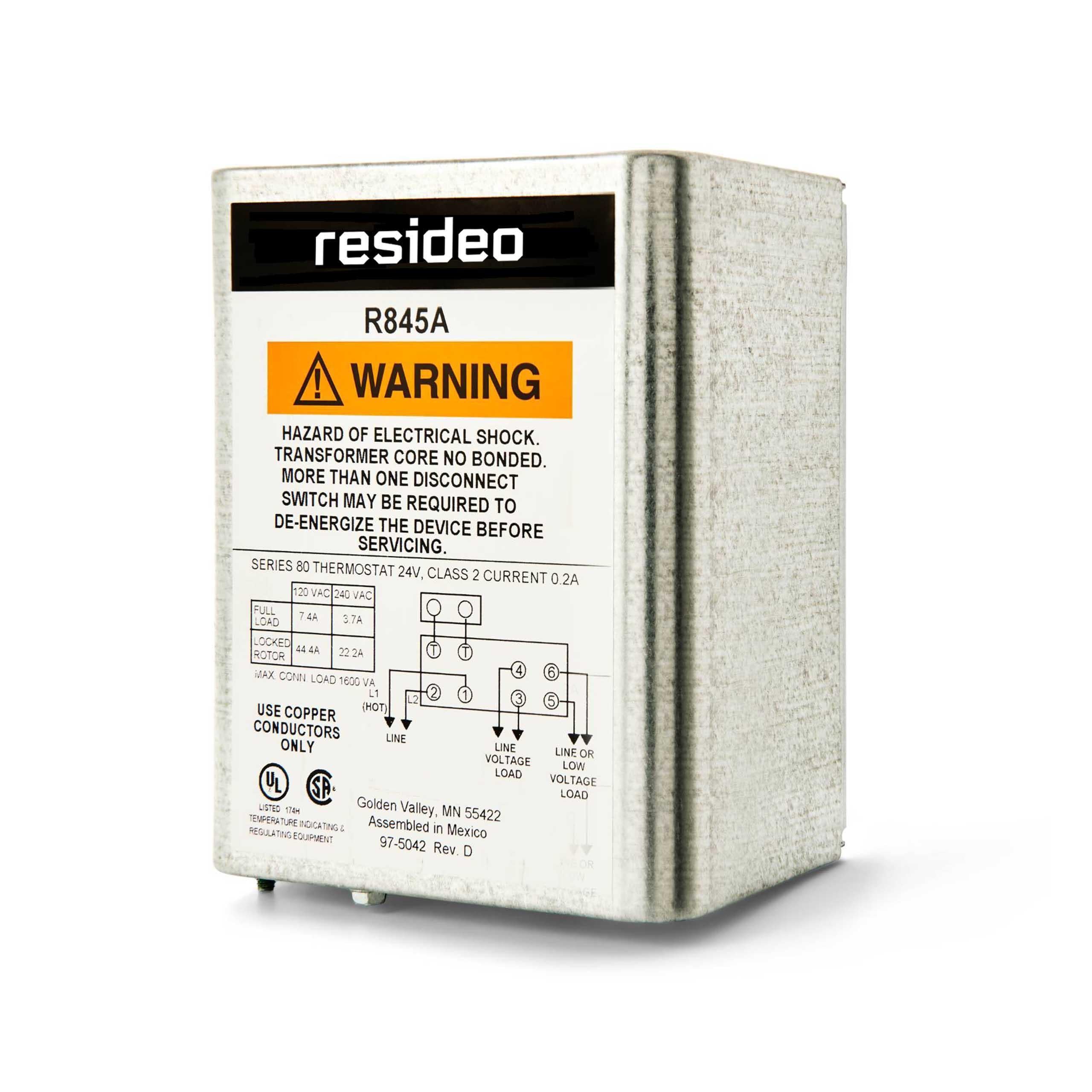

Resideo R845A1030/U Switching RelayResideo R845A1030/U Switching Relay
Resideo R845A1030/U Switching Relay
ResideoSKU: 38122

Resideo R845A1030/U Switching Relay

$133.59
In stock (16)

Resideo Switching Relay, 120 VAC, 5 W, 50/60 Hz, 24 VAC Coil, DPST, 7.4 A at 120 VAC/3.7 A at 240 VAC/3 A at 120 VAC/2 A at 240 VAC Secondary (AFL)/44.4 A at 120 VAC/22.2 A at 240 VAC/18 A at 120 VAC/12 A at 240 VAC Secondary (ALR)/10 A at 120 VAC/6 A at 240 VAC (Resistive) Contact, 105 to 115 deg F, 5-1/4 in H x 4-1/4 in W x 2-5/16 in D, Import

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Integral transformer provides low voltage power for control circuit
  • Provide intermediate switching of a line voltage device from a low voltage controller
Specifications
Manufacturer Part Number R845A1030/U
UPC 85267990073
Overall Dimensions n/a
Material n/a
Domestic or Import Import
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals UL Listed: File No. E4436, Guide No. XAPX | CSA Certified: File No. LR1620
