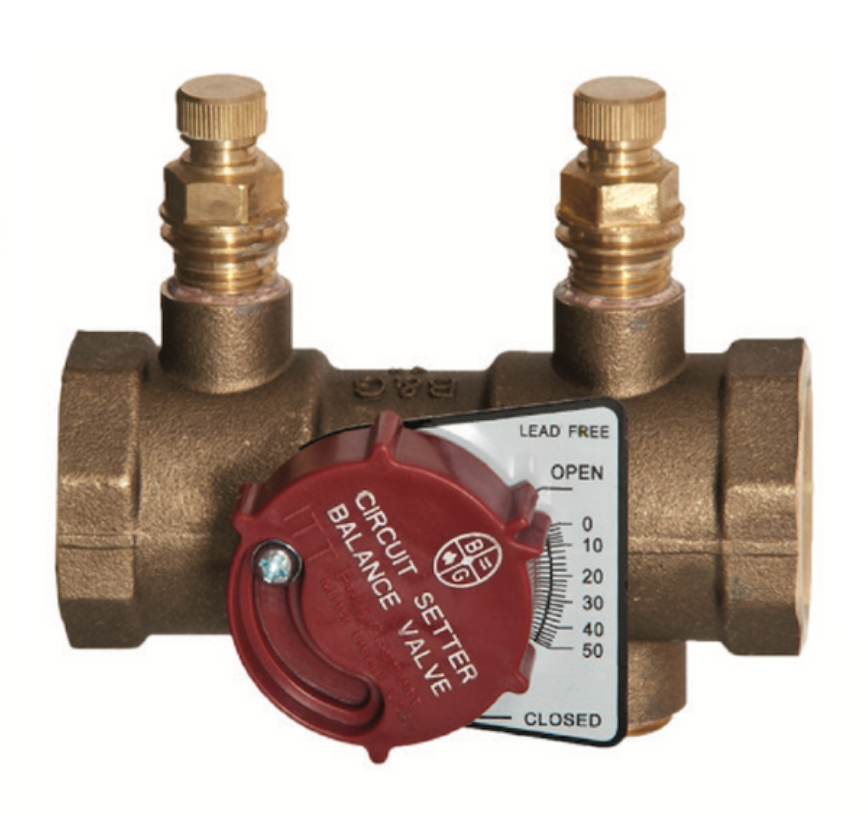

Bell & Gossett 117105LF Balance ValveBell & Gossett 117105LF Balance Valve
Bell & Gossett 117105LF Balance Valve
Bell & GossettSKU: 1308749

Bell & Gossett 117105LF Balance Valve

$536.20
In stock (5)

Bell & Gossett, 117105LF, Balance Valve, 2 in Nominal, NPT End Style, 400 psig Pressure, -4 to 250 deg F, Media: Water, 5.13 in Inlet to Outlet Length, Brass Body, EPDM Trim, Glass/Carbon Filled TFE Seat Ring Softgoods, 3.98 in W x 4.44 in H Dimensions

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Save time, energy and water with the lead-free circuit setter plus and circuit setter plus RF
  • Designed for all plumbing and HVAC systems
  • Provides equal flow throughout all circuits to conserve water and optimize system efficiency
  • Calibrated accurate flow control and measurement
  • Bi-directional design allows any installation configuration
  • Externally adjustable manual balance valve for easy adjustment
  • Reduces pump energy requirements
  • Meets or exceeds stringent codes for potable water
  • Includes memory stop indicator
  • Provides drain option
  • Provides positive shut off and isolation
  • Brass with EPT check valves readout valve
  • 304 stainless steel ball
  • Lead free
  • Includes pressure/temperature ports
  • Model CB-2 LF
Specifications
Manufacturer Part Number 117105LF
UPC 683328171050
Overall Dimensions 6-1/4 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals ANSI/NSF 372 | ASTM B283-C69300 | CSA Certified
