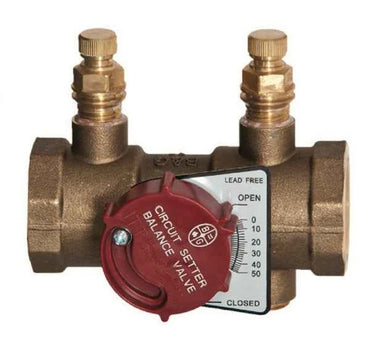

Bell & Gossett 117401LF Circuit Setter Balance ValveBell & Gossett 117401LF Circuit Setter Balance Valve
Bell & Gossett 117401LF Circuit Setter Balance Valve
Bell & GossettSKU: 1308752

Bell & Gossett 117401LF Circuit Setter Balance Valve

$212.10
In stock (11)

The Circuit Setter Plus offers precise adjustability and efficiency for potable water and HVAC systems. Engineered as a presettable balance valve, variable orifice flow meter, and positive shut-off valve, it ensures optimal system performance. Designed to enhance water conservation, this valve provides reliable balancing solutions. Featuring a 1-inch nominal size, brass body, EPDM trim, and a glass/carbon-filled TFE seat ring, the Bell & Gossett 117401LF supports temperatures from -4 to 250°F with a compact 4.29-inch inlet-to-outlet length.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Save time, energy and water with the lead-free circuit setter plus
  • Designed for all plumbing and HVAC systems
  • Provides equal flow throughout all circuits to conserve water and optimize system efficiency
  • Calibrated accurate flow control and measurement
  • Bi-directional design allows any installation configuration
  • Externally adjustable manual balance valve for easy adjustment
  • Reduces pump energy requirements
  • Meets or exceeds stringent codes for potable water
  • Includes memory stop indicator
  • Provides drain option
  • Provides positive shut off and isolation
  • Brass with EPT check valves readout valve
  • 304 stainless steel ball
  • Lead free
  • Includes pressure/temperature ports
  • 95-5 tin-antimony solder
  • Maximum pressure limitations 200 psi at 250 deg F to 300 psi at 200 deg F
  • Model CB-1S LF
Specifications
Manufacturer Part Number 117401LF
UPC 683328232867
Overall Dimensions 2.33 in W x 3.33 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals ASTM B283-C69300 | CSA Certified | NSF/ANSI 372
