Bell & GossettSKU: 1135058

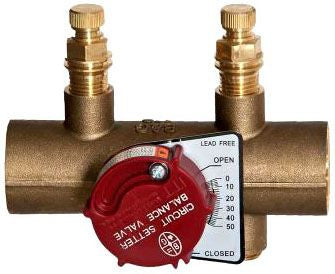

Bell & Gossett 117413LF 3/4inch CB3/4S Circuit Setter Balance Valve

$179.90
In stock (40)

Bell & Gossett Circuit Setter Plus balance valve for potable water and HVAC systems. 3/4" nominal size with C end style. Brass body rated -4 to 250°F. Functions as a presettable balance valve, variable orifice flow meter, and service shut-off. EPDM trim with glass/carbon filled TFE seat ring. 3.51" inlet to outlet length. Designed for system efficiency and water conservation.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Save time, energy and water with the lead-free circuit setter plus and circuit setter plus RF
  • Designed for all plumbing and HVAC systems
  • Provides equal flow throughout all circuits to conserve water and optimize system efficiency
  • Calibrated accurate flow control and measurement
  • Bi-directional design allows any installation configuration
  • Externally adjustable manual balance valve for easy adjustment
  • Reduces pump energy requirements
  • Meets or exceeds stringent codes for potable water
  • Includes memory stop indicator
  • Provides drain option
  • Provides positive shut off and isolation
  • Brass with EPT check valves readout valve
  • 304 stainless steel ball
  • Lead free
  • Includes pressure/temperature ports
  • 95-5 tin-antimony solder
  • Maximum pressure limitations 200 psi at 250 deg F to 300 psi at 200 deg F
  • Model CB-3/4S LF
Specifications
Manufacturer Part Number 117413LF
UPC 683328232836
Overall Dimensions 2.05 in W x 3.1 in H Dimensions
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals ASTM B283-C69300 | CSA Certified | NSF/ANSI 372
