Honeywell HomeSKU: 1457187

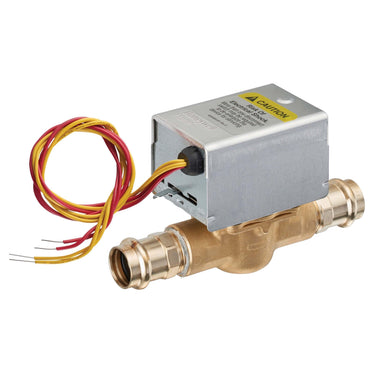

V8043E1413 1Inch Honeywell Propress Zone Valve With 18Inch Lead Wires And End Switch

$204.13
In stock (27)

The Honeywell Home V8043E1413 is a 1-inch nominal ProPress zone valve designed for low voltage, two-position control, and normally closed operation. It operates at 24 VAC with a current of 0.32 A, handling up to 120 psi static pressure and a maximum ambient water temperature of 125°F. The valve features an 18-inch lead wire, a 20 psi differential pressure rating, and a 15-second opening time. Constructed from brass, its dimensions are 2-3/8 inches wide, 6-7/8 inches deep, and 4 inches high.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored
  • All models may be installed without disassembling the valve
  • Compact construction for easy installation
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
  • Actuator motor may be replaced without removing the valve body or draining the system
  • 2-way straight-through body pattern
Specifications
Manufacturer Part Number V8043E1413/U
UPC n/a
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type 2-Position Low Voltage Normally Closed
ADA Compliance n/a
Warning n/a
Standards and Approvals n/a
