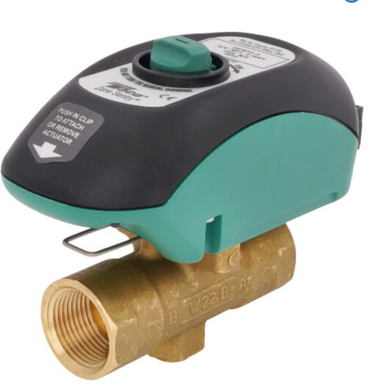

Taco® Z075T2-3 Zone Sentry 2 Way Normally Closed Zone Sentry ValveTaco® Z075T2-3 Zone Sentry 2 Way Normally Closed Zone Sentry Valve
Taco® Z075T2-3 Zone Sentry 2 Way Normally Closed Zone Sentry ValveTaco® Z075T2-3 Zone Sentry 2 Way Normally Closed Zone Sentry Valve
Taco® Z075T2-3 Zone Sentry 2 Way Normally Closed Zone Sentry Valve
Taco® Z075T2-3 Zone Sentry 2 Way Normally Closed Zone Sentry Valve
TacoSKU: 777279

Taco® Z075T2-3 Zone Sentry 2 Way Normally Closed Zone Sentry Valve

$208.28
In stock (19)

Taco®, Z075T2-3, Zone Sentry Valves, 2 Way Normally Closed, Series: Zone Sentry, 3/4 in Nominal, Threaded End Style, 300 psi Pressure, 10.3 Cv Coefficient of Volume, 115 V, 0.48 A, 220 deg F Water, 2-Pin Screw Connectors for Power and End Switch Electrical Connections, Brass; Taco® Hydronic Zone Valve, 2-Way, Series: Zone Sentry®, 3/4 in Nominal, Thread, 300 psi, 10.3 Cv, 24 VAC, 0.48 A Charging/0.06 A Power On, 20 to 220 deg F Water Temperature, Forged Brass

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Up to 93% less energy usage
  • Universal Installation Orientation
  • Usable on Condensing Chilled Water Installations
  • 12 valves on one 40VA transformer
  • Multi-Function LED
  • Quick Connect Wiring
  • Push button actuator replacement
  • Easy wire quick connections
  • Manual override button
  • Positional indicator
  • Ball, stem, press ring brass
  • Modified PTFE seat
  • EPDM o-ring
  • 125 psi shut-off pressure
  • 135 deg F ambient temp
  • 90 turns ball rotation speed
  • 60 Hz frequency
  • 11.4 W power consumption (charging)
  • 1.44 W power consumption (power on)
  • 0.5 A heat anticipator
  • 1 A at 24 VAC
  • High performance internally lubricated engineered polymer gears
Specifications
Manufacturer Part Number Z075T2-3;Z075T2-1
UPC 687752006261
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type 2 Way Normally Closed
ADA Compliance n/a
Warning n/a
Standards and Approvals n/a
