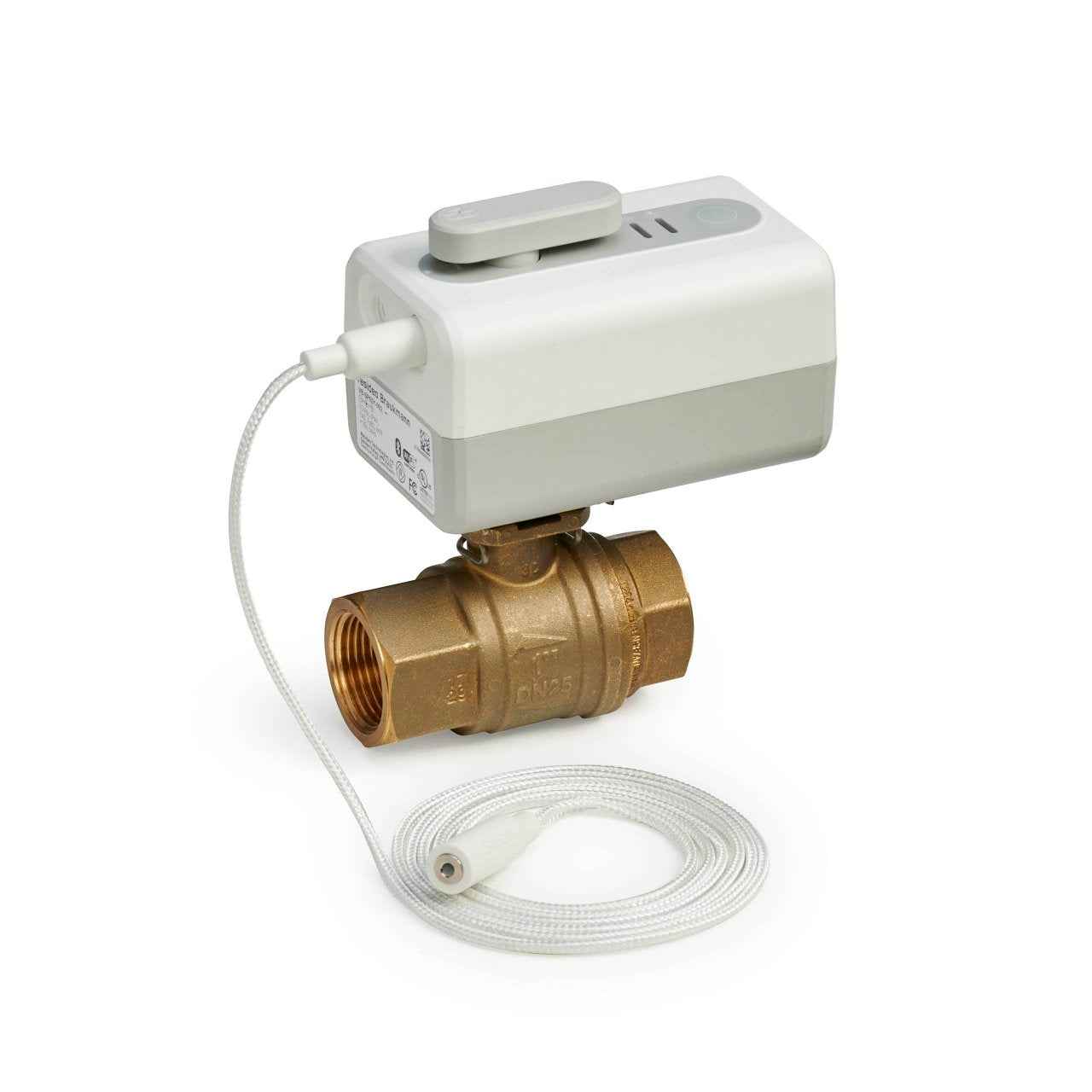

Resideo VWS02Y-3/4 - L5 WiFi Actuator with 3/4in NPT Ball ValveResideo VWS02Y-3/4 - L5 WiFi Actuator with 3/4in NPT Ball Valve
Resideo VWS02Y-3/4 - L5 WiFi Actuator with 3/4in NPT Ball Valve
ResideoSKU: 1721280

Resideo VWS02Y-3/4 - L5 WiFi Actuator with 3/4in NPT Ball Valve

$228.81
Low Stock (1)

Water damage is one of the most expensive problems a homeowner faces — insurance claims average over $10,000 per incident, and 93% of those incidents are preventable. The Resideo Braukmann L5 WiFi Water Leak Shutoff Valve is the professional-grade solution: installed on the main water line, it detects a leak through the included sensor cable or a paired Resideo WiFi leak detector, then automatically closes the ball valve and shuts off the water supply before damage can spread.

Built on more than 100 years of Braukmann water engineering, the L5 is designed for professional installation in about ten minutes and homeowner management through the Resideo app. It pairs WiFi connectivity, automatic shutoff, and a lead-free ball valve into a single UL-listed device.

Where to install: Mount the L5 on the main water line, downstream of the main shutoff valve and pressure reducing valve (if present). It can be installed in any orientation — horizontal, vertical, or angled. Do not install upstream of a pressure tank, on systems with an external hot water source, or on fire sprinkler or suppression lines.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Automatically shuts off your water when a leak is detected — no manual intervention needed; the valve closes immediately when the sensor cable or a paired detector finds water
  • Sends alerts to your phone and email the moment a leak occurs — so you know what happened and can act, whether you're home or not
  • Fully controllable from the Resideo app — open or close the valve, customize alerts, and assign notifications to family members, a property manager, or your plumber
  • Manual override on the actuator — turn water on or off locally when needed, even during a power outage
  • Sensor cable extends to 500 feet — lay the included 5 ft cable along baseboards or across a utility room floor, then add extension cables to cover up to 500 ft of space
  • Pairs with up to 30 Resideo L1 WiFi Leak Detectors — add point detectors under sinks, near water heaters, or anywhere else in the home for whole-house coverage beyond the cable sensor
  • Includes a lead-free 3/4 in NPT ball valve — installs in any orientation; no separate valve purchase needed
  • Connects to your 2.4 GHz WiFi network — setup via Bluetooth through the Resideo app; note that WPA2 security is required (WPA3 networks are not currently supported)
  • Splash-rated for utility and mechanical room installation — IPX4 / UL Type 2 rated for indoor areas where incidental moisture is possible
  • 5-year limited warranty
Specifications
Manufacturer Part Number VWS02Y-3/4
UPC 194159007918
Overall Dimensions 5.67 in H x 2.67 in D x 4.69 in L, with 10 ft cord
Material n/a
Domestic or Import Import
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals CE EMC 2014/30/EU, CE RED 2014/53/EU, EN 60730-1, EN 60730-2-14, UKCA, CAN/CSA C22.2, UL 60730-1, UL 60730-2-14, WEEE 2012/19/EU, ES 116, RoHS 2011/65/EU, ES 50040083, REACH 1907/2006, FCC part 15, subpart C, RSS-247
