ResideoSKU: 578448

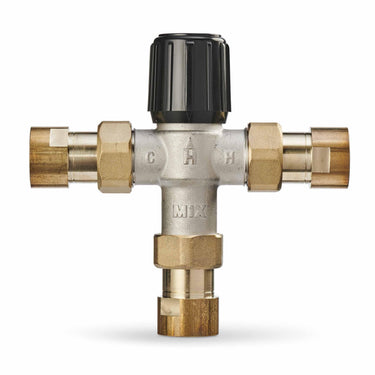

Resideo Braukmann AM101R-UT-1/U AM-1 Proportional Thermostatic Mixing Valve

$144.28
Low Stock (2)

Resideo Braukmann Thermostatic Mixing Valve, Proportional, Series: AM-1, 3/4 in Nominal, NPT Union, 150 psi, 212 deg F, 12 gpm Flow, Brass Body, EPDM Rubber, PTFE Coated, 6.4 in H x 6.5 in W, Import

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Dual purpose mixing or diverting values
  • Offers constant water temperature under changing operating conditions
  • Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
  • Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
  • Tamper-resistant design with nickel-plated brass construction and EPDM O-rings
  • Designed for easy maintenance and Teflon® coating prevents mineral build-up and extends life
  • Operating temperature range: 70 to 180 deg F
  • Capacity: 3.9 Cv
  • Heating only
Specifications
Manufacturer Part Number AM101R-UT-1/U
UPC 85267825238
Overall Dimensions 4-15/16 in W x 1-1/8 in D x 4-5/8 in H
Material n/a
Domestic or Import Import
End Style n/a
Type Proportional
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals n/a
