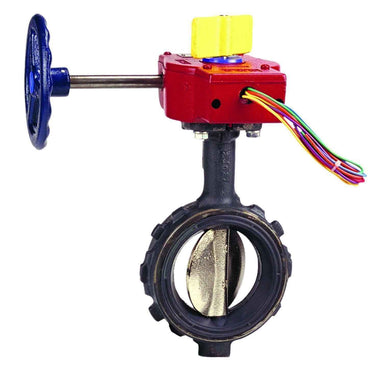

NIBCO® NLH80JK WD-3510-4-GP Wafer Style Butterfly Valve with Ground PostNIBCO® NLH80JK WD-3510-4-GP Wafer Style Butterfly Valve with Ground Post
NIBCO® NLH80JK WD-3510-4-GP Wafer Style Butterfly Valve with Ground Post
NIBCOSKU: 17435

NIBCO® NLH80JK WD-3510-4-GP Wafer Style Butterfly Valve with Ground Post

$165.40
In stock (7)

NIBCO® Butterfly Valve, Wafer Style, Series: WD-3510-4-GP, 6 in Nominal, Threaded, 125/150 lb., Manual Gear Operated Actuator, 2.31 in Inlet to Outlet Length, Ductile Iron Body, Ductile Iron Disc, 416 Stainless Steel Stem & Pin, EPDM, 17-3/4 in L Dimensions, Domestic

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Valve pressure rating 250 psi wwp
  • EPDM molded-in seat liner
  • Geometric drive
  • Extended neck
  • Operating mechanism, Manual gear operator
  • Available with (suffix 8N) or without (suffix 4N) internal monitor switches
Specifications
Manufacturer Part Number NLH80JK
UPC 39923732200
Overall Dimensions 5-3/4 in H
Material n/a
Domestic or Import Domestic
End Style n/a
Type Wafer Style
ADA Compliance n/a
Warning n/a
Standards and Approvals ASTM A536 Body | ASTM 395 Disc | ASTM 582 Type 416 Stem | FM Approved | MEA 9-97-E | MSS SP-25 | MSS SP-67 | UL/ULC Listed | PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
