Zoeller®SKU: 46223

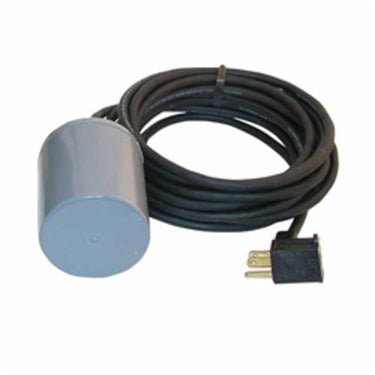

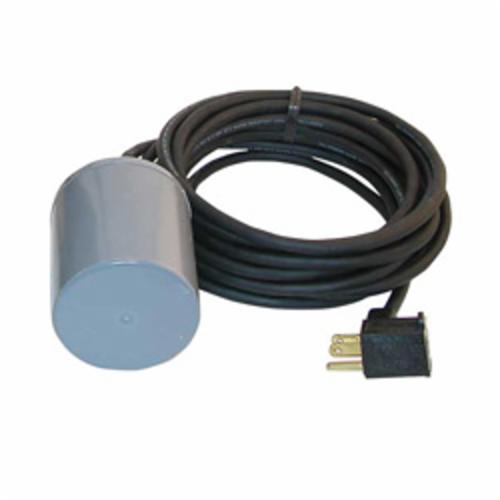

Zoeller® 10-0032 Switch-Mate Piggyback Variable Level Float Switch with Mounting Clamp

$109.97
In stock (17)

Zoeller® Float Switch, Piggyback Variable Level, Series: Switch-Mate, 115 VAC, Normally Open Switch, PVC Body

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Converts a nonautomatic pump to an automatic pump
  • Simple installation
  • Adjustable/variable level
  • Standard 15 ft and 20 ft SJOW CPE cord with molded plug
  • Float constructed of durable PVC/polypropylene encasing variable level switch
  • Standard normally open (NO) pumps down
  • Optional normally closed available (NC) pumps up, consult factory
  • Float is omnidirectional
  • Variable level float switch, for use in 18 in (46 cm) Dia minimum basins
  • No molded plug, can be used as a control switch to operate an external magnetic or combination starter on 3 ph pumps
  • Vertical piggyback float switch, ideal for narrow diameter basins 6-1/2 in (16.5 cm) maximum cycle range
  • Use recommendation chart for switch selection
  • 140 deg F operating temperature
  • Variable level float switches in this section are mechanically activated and do not contain mercury
  • Remove plug if present and use with junction box 10-0002 when field wiring is required
  • 15 A rating, 15 ft cord
Specifications
Manufacturer Part Number 10-0032
UPC 53514011864
Overall Dimensions 3 in Dia
Material n/a
Domestic or Import n/a
End Style n/a
Type Piggyback Variable Level
ADA Compliance n/a
