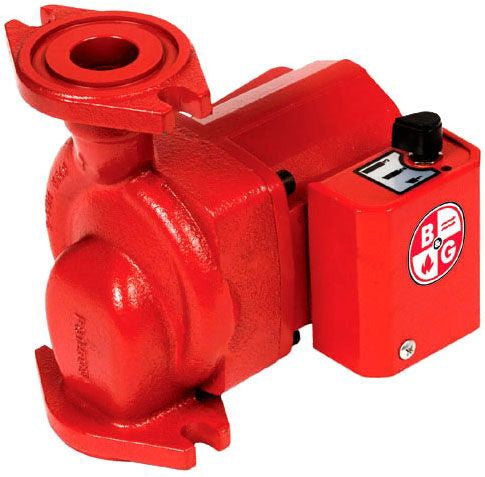

Bell & Gossett 103417 NRF 3-Speed Wet Rotor Circulator PumpBell & Gossett 103417 NRF 3-Speed Wet Rotor Circulator Pump
Bell & Gossett 103417 NRF 3-Speed Wet Rotor Circulator Pump
Bell & GossettSKU: 650751

Bell & Gossett 103417 NRF 3-Speed Wet Rotor Circulator Pump

$210.70
In stock (39)

Bell & Gossett NRF Series wet rotor circulator pump delivers reliable performance for hydronic heating and cooling systems. This 3-speed unit operates at 24 gpm with a 19 ft maximum head, providing flexible flow control to match system demands. Rated for 115 VAC, 60 Hz single-phase operation at 1.1 A, it features a durable in-line mount design and handles temperatures up to 225°F at 150 psi maximum pressure. The 2950 rpm motor consumes 125 W for efficient energy use. Compact dimensions (5-1/8" W × 6-3/16" D × 4-7/8" H) simplify installation in tight spaces. Ideal for residential and light commercial hydronic applications requiring dependable circulation.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • High starting torque for dependable seasonal start-ups (Up to 80% more than competing circulators)
  • Unique B and G DuraGlide bearing system assures years of trouble-free start-ups
  • Closed impeller design improves operating efficiency
  • Backed by B and G's representatives and a 3-year warranty-the best in the business
  • DuraGlide bearing system incorporates several components working together to eliminate seasonal freeze-up
  • Stabilized, heat resistant, polypropylene impeller, its closed design improves operating efficiency
  • Self-cleaning particle shield protects the shaft and bearings from system start-up debris
  • 1-piece, high-nickel stainless steel stator can isolates the stator from system fluid and maintains precision bearing alignment for longer bearing life
  • Carbon bearings, diamond-like ceramic shaft and generous clearances are more resistant to lime, chloride and oxide build-up
  • Face plate and rotor sleeve feature corrosion resistant stainless steel construction for longer life
  • 3/4, 1, 1-1/4 and 1-1/2 in NPT flange
  • Construction: cast iron pump body, Noryl impeller, ceramic shaft, carbon bearings
Specifications
Manufacturer Part Number 103417
UPC 683328219936
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type 3-Speed
ADA Compliance n/a
Warning n/a
Standards and Approvals cULus Listed | CSA Certified | UL Listed
