Resideo C554A1463/U Flame DetectorResideo C554A1463/U Flame Detector
Resideo C554A1463/U Flame Detector
ResideoSKU: 38069

Resideo C554A1463/U Flame Detector

$50.00
In stock (179)

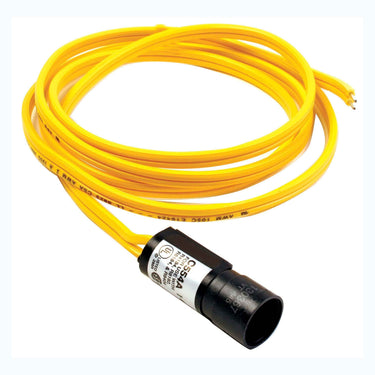

The Resideo C554A1463/U Flame Detector features a Cadmium-Sulfide photoconductive sensor with 60-inch leads and a Type “R” mounting bracket. Designed for enhanced sensitivity, this flame detector is ideal for sequencing oil burner systems, ensuring precise and reliable flame detection.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • On flame failure, the light sensitive cadmium sulfide cell, in conjunction with flame sensing circuitry, causes the Protectorelay® control to shutdown the main oil burner
  • Glass-to-metal hermetic seal in plug-in cell prevents deterioration by humidity, soot or oil fumes
  • Replaceable CAD cell
  • Photoconductive flame sensing device for sequencing oil burner systems
Specifications
Manufacturer Part Number C554A1463/U
UPC 85267990141
Overall Dimensions 4-5/32 in L x 4-11/32 in W x 2-1/2 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals UL Listed: File No. MP268, Guide No. MCCZ | CSA Component Listed: File No. LR1620, Guide No. 300
