ResideoSKU: 38085

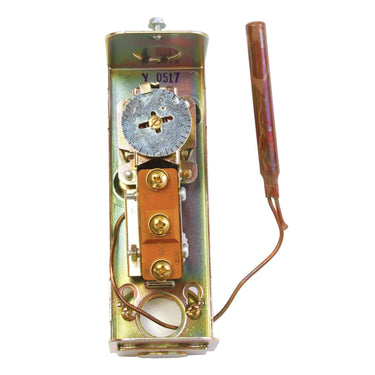

Resideo L6006A1145/U High and Low Limit Aquastat Controller

$181.71
In stock (22)

Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Totally enclosed Micro switch™ snap-acting switches operate on temperature rise to set point
  • Visible control point scale and external adjustments screw permit easy setting
  • Horizontal or vertical insertion of the sensing element
  • Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
  • Direct or well immersion TRADELINE® models include heat-conductive compound
  • 5.1 to 8 A at 120 to 240 VAC for full load
  • 30.6 to 48 A at 120 to 240 VAC for locked rotor
Specifications
Manufacturer Part Number L6006A1145/U
UPC 85267053693
Overall Dimensions 4-3/32 in L x 3-3/16 in W x 4-29/32 in H
Material n/a
Domestic or Import Import
End Style n/a
Type High and Low limit
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals CSA File No. LR95329-1 | Guide No MBPR2 | UL File No. MP466
