ResideoSKU: 1014504

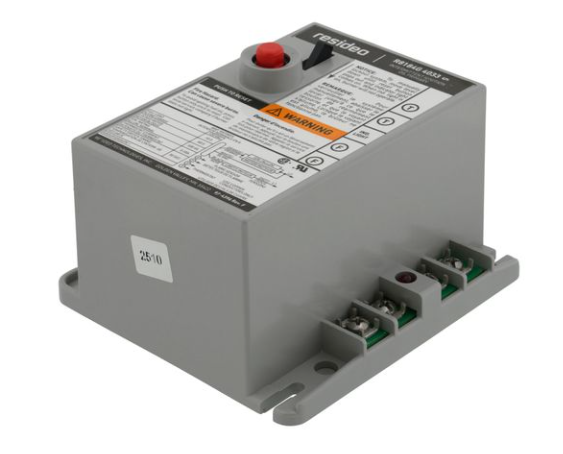

Resideo Protectorelay® R8184G4033/U Oil Burner Control

$157.23
In stock (14)

Designed for automatic, non-recycling control of intermittent ignition oil burner systems, the Resideo Protectorelay® Oil Burner Control operates at 120/240 VAC with a current range of 3.7 to 7.4 A. Engineered to function reliably between -40 to 130°F, it mounts conveniently in a junction box for streamlined installation.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Provides automatic, no recycling control of an intermittent ignition oil burner system
  • Controls oil burner, oil valves (if desired) and the ignition transformer in response to a call for heat
  • Solid state flame sensing circuit
  • LED on terminal strip indicates system lockout
  • Remote lockout indication (available on some models)
  • Enclosed safety switch with external reset button
  • Manual trip lever opens safety switch for system maintenance

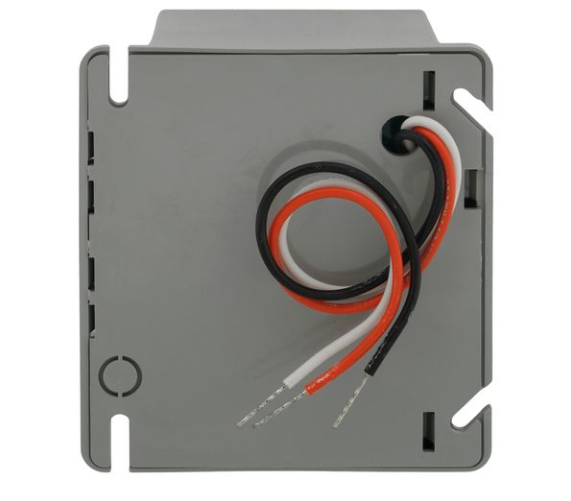

  • Mounts on standard 4 x 4 in junction box select models may be mounted directly on burner housing
  • C554A cadmium sulfide flame detector and 24 VAC thermostat required
  • 22.2 to 44.4 A at 120 to 240 VAC for locked rotor
Specifications
Manufacturer Part Number R8184G4033/U
UPC 85267078658
Overall Dimensions 4-3/8 in H x 4 1/8 in W x 2 1/2 in D
Material n/a
Domestic or Import Domestic
End Style n/a
Type n/a
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals UL Component Recognized; File no. MP268, Vol. 35 Sec. 3 | CSA Certified; File no. LR95329-1
