Resideo Protectorelay® R8184G4066/U Oil Burner ControlResideo Protectorelay® R8184G4066/U Oil Burner Control
Resideo Protectorelay® R8184G4066/U Oil Burner Control
ResideoSKU: 38117

Resideo Protectorelay® R8184G4066/U Oil Burner Control

$209.86
In stock (18)

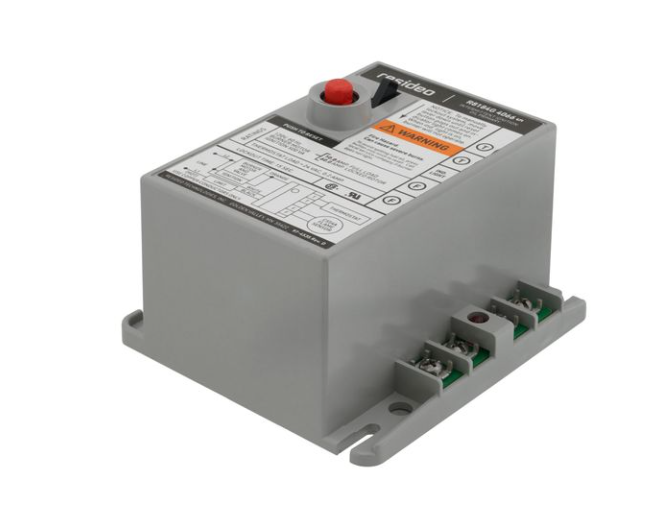

Resideo Protectorelay® R8184G4066/U Oil Burner Control delivers reliable intermittent ignition operation for residential and light commercial heating systems. Rated for 120/240 VAC at 3.7 to 7.4 amperes, this junction box-mounted control maintains stable performance across -40 to 130°F operating temperatures. Compact dimensions (4-3/8" H × 4-1/8" W × 2-1/2" D) simplify installation in tight spaces. Built on Resideo's proven Protectorelay® platform, it provides dependable flame supervision and safety shutdown protection for oil-fired burners. Ideal for retrofit and new construction applications requiring code-compliant, field-proven control technology.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Provides automatic, no recycling control of an intermittent ignition oil burner system
  • Controls oil burner, oil valves (if desired) and the ignition transformer in response to a call for heat
  • Solid state flame sensing circuit
  • LED on terminal strip indicates system lockout
  • Remote lockout indication (available on some models)
  • Enclosed safety switch with external reset button
  • Manual trip lever opens safety switch for system maintenance

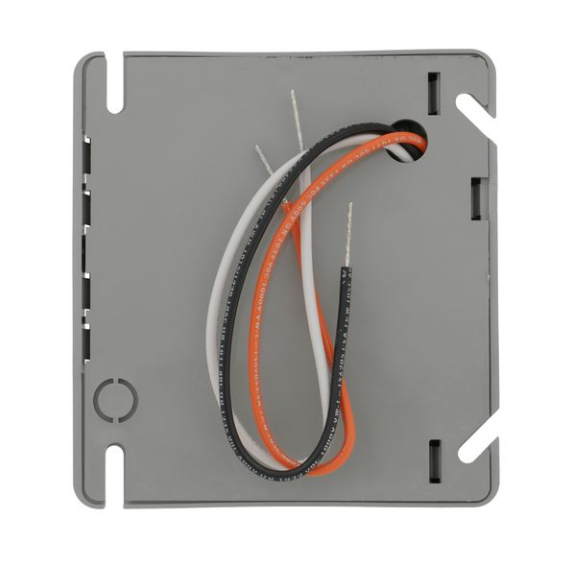

  • Mounts on standard 4 x 4 in junction box select models may be mounted directly on burner housing
  • C554A cadmium sulfide flame detector and 24 VAC thermostat required
  • 22.2 to 44.4 A at 120 to 240 VAC for locked rotor
Specifications
Manufacturer Part Number R8184G4066/U
UPC 85267078672
Overall Dimensions 60 in L x 1/2 in W x 1/2 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals UL Component Recognized; File no. MP268, Vol. 35 Sec. 1,3 | CSA Certified; File no. LR95329-1
