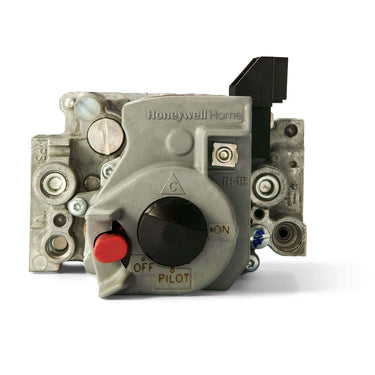

Resideo VR8200A2132/U 1-Stage Gas ValveResideo VR8200A2132/U 1-Stage Gas Valve
Resideo VR8200A2132/U 1-Stage Gas Valve
ResideoSKU: 37918

Resideo VR8200A2132/U 1-Stage Gas Valve

$145.47
In stock (14)

The Resideo VR8200A2132/U is a 1-stage gas valve engineered for standing pilot, gas-fired appliances operating on 24 Vac power. This combination control integrates safety shutoff, manual isolation, dual automatic operators, pressure regulation, and pilot adjustment in a single compact unit. Rated for natural gas applications with capacities spanning 20,000 to 200,000 Btu/hr, it handles flow rates from 30 to 300 cfh. Features 1/2-inch nominal inlet, 0.5 psi regulation, 1/4-inch male quick-connect terminal, and operates reliably across 0 to 175°F. Ideal for furnaces, boilers, and similar heating equipment requiring dependable modulation and safety control.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
  • Compact size
  • Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
  • Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
  • Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
  • All adjustments, wiring connections and pilot outlet are accessible from top of control
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
Specifications
Manufacturer Part Number VR8200A2132/U
UPC 85267112055
Overall Dimensions 5-7/32 in W x 3 in D x 9-21/32 in H
Material n/a
Domestic or Import Import
End Style n/a
Type 1-Stage
ADA Compliance n/a
Warning Professional Installation Required.
Standards and Approvals UL Component Recognized MCCZ2.MH5323 | CSA International: 112395 | Australian Gas Association 4752
