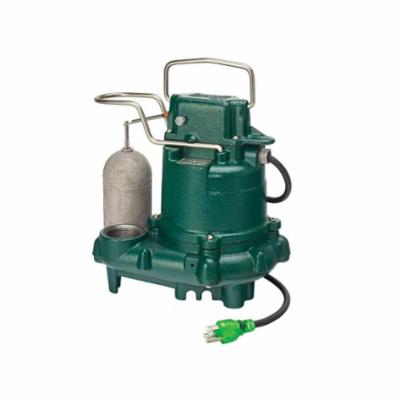

Zoeller® 63-0001 M63 Automatic Submersible PumpZoeller® 63-0001 M63 Automatic Submersible Pump
Zoeller® 63-0001 M63 Automatic Submersible Pump
ZoellerSKU: 1351860

Zoeller® 63-0001 M63 Automatic Submersible Pump

$315.75
5.0 (1 review)
In stock (14)

Zoeller® Submersible Pump, Automatic, Series: M63, 43 gpm, 1-1/2 in NPT Outlet, 19-1/4 ft Maximum Head, 115 VAC, 9.7 A, 1 ph , 130 deg F, 1/3 hp, Non-Clogging Vortex Impeller, Polypropylene Float, 3-Wire Cord, Sleeve Bearing, 1/2 in Maximum Diameter of Solids, Cast Iron, Green, Powder Epoxy Coated, 10-3/32 in W x 10-1/16 in H Dimensions, Domestic

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Float-operated, submersible, 2-pole mechanical switch integrating advanced switch technology
  • Corrosion resistant, powder coated epoxy
  • FKM outer switch boot
  • No sheet metal parts to rust or corrode
  • Stainless steel screws, switch arm, guard and handle
  • No screens to clog
  • Watertight neoprene square ring between motor and pump housing
  • Oil filled, hermetically-sealed, automatic reset thermal overload protected motor
  • Upper and lower sleeve bearings running in bath of oil
  • Entire unit pressure-tested after assembly
  • Carbon and ceramic shaft seal
  • Maximum temperature for effluent or dewatering 130 deg F
  • Passes 1/2 in (12 mm) spherical solids
  • Watertight and dust-tight
  • Permanently oiled bearings
  • Cast iron impeller
  • Solid, buoyant, polypropylene float
  • Oil filled cooling
  • Auto reset thermal overload motor protection
  • Stainless steel hardware and neoprene gasket
Specifications
Manufacturer Part Number 63-0001
UPC 53514377281
Overall Dimensions 5-7/8 in W x 2-5/8 in H
Material n/a
Domestic or Import Domestic
End Style n/a
Type Automatic
ADA Compliance n/a
Warning n/a
Standards and Approvals AISI 1215 Motor Shaft | cCSAus Certified | CSA Certified | C22.2 #108 | SSPMA Certified | UL 778
