TacoSKU: 1322211

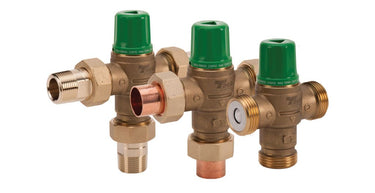

Taco® 5004-H3-G 5000 Mixing Valve, 1 in

$223.76
In stock (6)

The Taco® 5004-H3-G 5000 Mixing Valve, 1 inch, is a versatile valve certified to NSF 61 and ASSE 1017 standards, designed for optimal performance in domestic hot water systems. Its advanced thermostatic element maintains a consistent mixed water temperature across a wide range of 85°F to 176°F. This valve enables water heaters to store hot water at temperatures high enough to increase storage capacity and eliminate harmful bacteria, while delivering water safely at 120°F or below.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • 1 gpm (3.8 L/Min) Minimum Flow
  • 10 deg F Minimum Temperature Differential Between Hot Supply and Mixed
  • Factory set to 115 to 120 deg F
  • 120 to 180 deg F Hot Supply Temperature
  • 20 gpm (76 L/Min) Maximum Flow
  • 20% Maximum Variation in Supply Pressure
  • 39 to 80 deg F Cold Supply Temperature
  • 85 to 175 F Outlet Temperature Range
  • Delivers Stable Mixed Water Temperature
  • Extended Mix Temperature Range of 85-176 deg F
  • Ideal for Domestic Water Distribution Points
  • Includes Temperature Gauge
  • Outlet Temperature Strip
  • Sweat, NPT, Pex, Press, CPVC Union Connections
  • Tamper-Resistance Cap
  • 3 deg F Accuracy of Outlet Temperature
Specifications
Manufacturer Part Number 5004-H3-G
UPC n/a
Overall Dimensions n/a
Material n/a
Domestic or Import Domestic
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals ASSE 1017
Resources
Delivery & Returns

Orders will ship same day if received by 2pm EST.

Upcoming holiday closures: May 25, 2026

All returns are inspected on receipt; credit is issued after condition is confirmed. Credit is issued only for items returned in original, saleable condition after inspection.

FINAL SALE ITEMS ARE NOT ELIGIBLE FOR RETURNS OR EXCHANGES.

Recently viewed products
