ResideoSKU: 308430

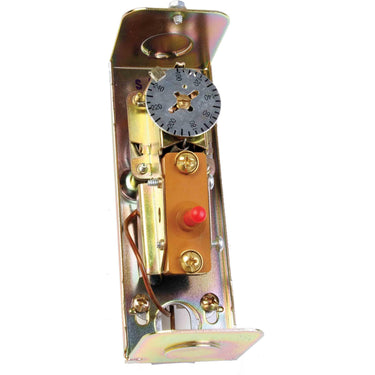

Resideo L4006H1004/U Breaks on Rise Aquastat Controller

$284.06
In stock (7)

Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required. Honeywell's L4006 are used in applications that utilize the existing wells.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Totally enclosed Micro switch™ snap-acting switches operate on temperature rise to set point
  • Visible control point scale and external adjustments screw permit easy setting
  • Horizontal or vertical insertion of the sensing element
  • Direct or well immersion of the sensing element
  • Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
  • TRADELINE® models include heat-conductive compound
  • 5.1 to 8 A at 120 to 240 VAC for full load
  • 30.6 to 48 A at 120 to 240 VAC for locked rotor
Specifications
Manufacturer Part Number L4006H1004/U
UPC 85267048972
Overall Dimensions 4-31/32 in L
Material n/a
Domestic or Import n/a
End Style n/a
Type Breaks on Rise
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals AGA Certified | CSA File No. LR95329-1 | Guide No MBPR2 | UL File No. MP466
