American StandardSKU: 1738113

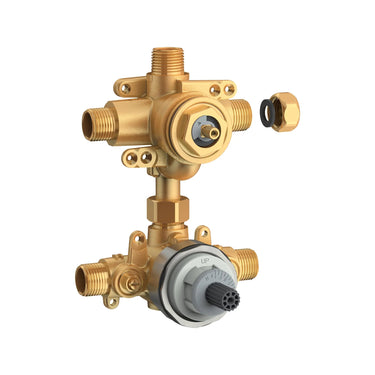

American Standard RU520 Rough-In Valve, 1/2 in NPT Inlet 1/2 in NPT Outlet

$169.00
In stock (24)

The American Standard RU520 Rough-In Valve features a 1/2 inch NPT inlet and outlet with options for 2 or 3-way flow configurations, supporting flow rates from 10 to 95 gpm. Designed for compatibility with TU series trim kits and cartridges, this valve mounts on walls and has a durable cast DZR brass body. Its dimensions are 6-15/16 inches in height by 4-11/32 inches in length.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • VERSATILE INSTALLATON: Compact body and flat back for easy and solid installation
  • 2-WAY OR 3-WAY DISCRETE FUNCTIONALITY: Provides the ability to alternate water flow between 2 or 3 separate outlets with cartridge M970787-0070, included with Aspirations trim
  • OPTIONAL SHARED CAPABILITY: Provides the ability to share water flow simultaneously from up to 3 outlets with the addition of shared cartridge, M970789-0070, sold separately
  • NO SOLDERING REQUIRED: Solid brass inlet connections for fast installation without adaptors, reducing leak points
  • EXCLUSIVE PLASTER GUARD: Protects valve and acts as a guide during installation; can serve as mounting support for thin-wall installations
  • SELF-ALIGNING SCREW HOLES: Screw holes are easy to find; simplifies reattaching plaster guard to valve body
  • EASY SERVICING: Screwdriver stops for servicing at the valve
Specifications
Manufacturer Part Number RU520
UPC n/a
Overall Dimensions n/a
Material n/a
Domestic or Import Import
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals ASME A112.18.1 | CSA B125.1 ASSE 1016 | ASME A112.1016 | CSA B125.16
