Amtrol®SKU: 36275

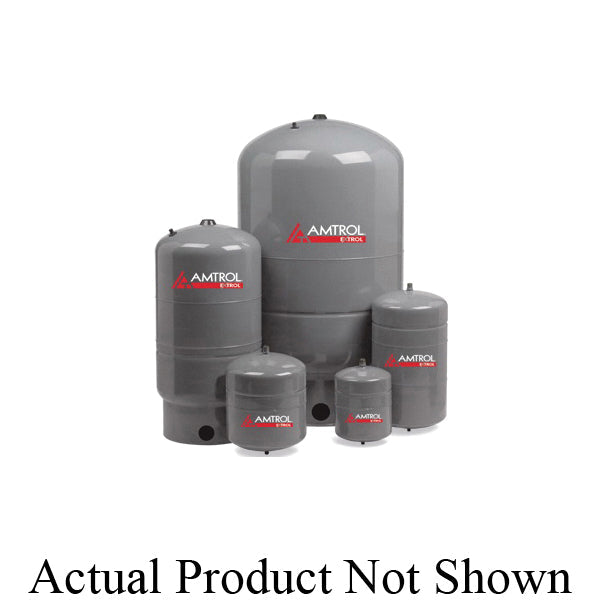

Amtrol® EXTROL® 102-1 EX Series Boiler System Expansion Tank

$77.67
In stock (1200)

Amtrol® EXTROL® Boiler System Expansion Tank, Series: EX Series, 4.4 gal, 11 in Dia, 15 in Height, 100 psig, Acceptance Factor: 0.57, 2.5 gal Acceptance Capacity, 240 deg F, Heavy Duty Butyl/EPDM Diaphragm, Steel Shell, Urethane Topcoat

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Water-tight reservoir for expanded water
  • Thick, heavy duty Butyl/EPDM diaphragm for long service life
  • Sealed air cushion-factory precharged and 100% tested
  • 12 psig factory precharge
  • Strong, deep-drawn steel tank
  • Projection welded air stem maintains precharge setting
  • 1/2 in NPTM system connection
  • Accepts expanded water as system temperature rises to reduce pressure build-up
  • Helps reduce energy consumption and reduces system wear
  • Fill-Trol® models eliminate the need for a separate automatic fill valve and tank pressure controls system fill
  • Suitable in propylene glycol applications with mixtures up to 50%
Specifications
Manufacturer Part Number 102-1
UPC 642031113061
Overall Dimensions 3/8 in Dia x 3 in L Bulb
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
