AmtrolSKU: 36278

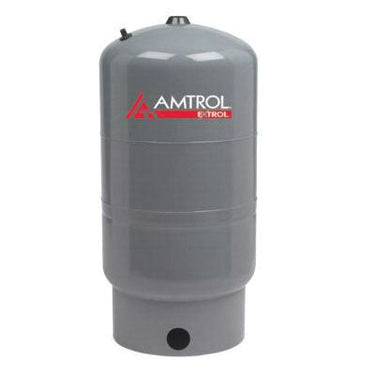

Amtrol® EXTROL® 118-27 SX Series Vertical Floor-Standing Boiler System Expansion Tank

$266.98
In stock (47)

Amtrol® EXTROL® Boiler System Expansion Tank, Vertical Floor-Standing, Series: SX Series, 14 gal, 15 in Dia, 24 in Height, 100 psi, Acceptance Factor: 0.81, 11.3 gal Acceptance Capacity, 240 deg F, Heavy Duty Butyl/EPDM Diaphragm, Steel Shell, Urethane Topcoat, Domestic

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • These non-ASME tanks are available in sizes up to 86 gallons and can be used with high output boilers up to 1,500,000 BTU's
  • Accepts expanded water as system temperature rises to reduce pressure build-up
  • 12 psig factory precharged
  • 1 in NPTF steel system connection
  • 1-13/16 in stand to connection
  • Projection welded air valve
Specifications
Manufacturer Part Number 118-27
UPC 642031118967
Overall Dimensions n/a
Material n/a
Domestic or Import Domestic
End Style n/a
Type Vertical Floor-Standing
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals ISO 9001:2008
