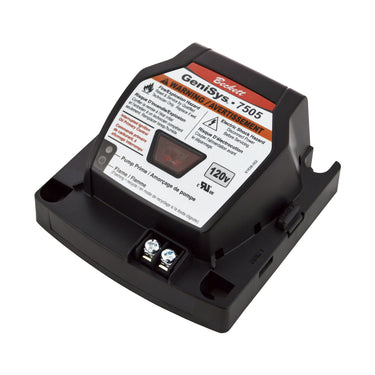

Beckett 7505A0000U Genisys Advanced Oil Burner Primary Control

LICENSED CONTRACTOR INSTALLATION REQUIRED - Must be installed by qualified professionals with calibrated combustion testing equipment to prevent property damage, injury, or death. The Beckett 7505A GeniSys is a 120 VAC advanced primary safety control designed as a direct replacement for Honeywell R8184G controls on older Beckett burners without solenoid valves. This water-resistant control provides interrupted or intermittent duty ignition with 15-second lockout time, zero pre-purge and post-purge (factory settings), and compatibility with both mechanical and power-stealing thermostats through 24 VAC terminals. Key features include three diagnostic status lights, welded relay protection with redundant motor relays, technician pump prime mode, and dual communication ports for alarm contacts and programming access. The unit offers limited reset and recycle functionality with cadmium cell flame sensing, while pre-purge and post-purge times can be customized using the GeniSys Contractor Tool (52082U) for enhanced system optimization. Backed by a 5-year warranty for residential and light commercial oil burner applications, 15 second lockout timing, 60 hz
