Bell & GossettSKU: 36613

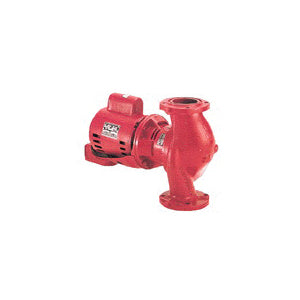

Bell & Gossett 106189 100 3-Piece Booster Pump

$716.10
In stock (13)

Bell & Gossett Booster Pump, 3-Piece, Series: 100, 1/12 hp, 115 VAC, 1.75 A, 60 Hz, 1 ph, 125 psi Maximum, 1725 rpm Motor, Centrifugal Impeller, 225 deg F, Sleeve Bearing, 14-7/8 in L x 6-3/8 in H

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Oil lubricated circulator
  • Cast iron body
  • 115V With built-in overload protection
  • Sleeve bearing, oil lubricated with replaceable resilient motor mounts
  • Noise dampening coupler
  • Bell & Gossetts own flexible spring design adds to quiet operation, do not accept a substitute
  • Long bronze sleeve bearings maintain exact shaft alignment
  • Provides for constant circulation of oil over bearing surfaces
  • Precision ground pump shaft is oversized to provide large bearing surfaces
  • Hardened integral thrust collar minimizes end-thrust to ensure long seal and bearing life
  • The Bell & Gossett mechanical seal is designed to withstand the wide range of water temperatures, pressures, additives and dissolved solids common in hydronic systems
  • Centrifugal impeller prevents accumulation of air at seal faces to assure long life
  • Close impeller/body tolerances minimize water slippage and maximize efficiency
  • 3/4, 1, 1-1/4 and 1-1/2 in NPT flange
  • Model 100NFI
Specifications
Manufacturer Part Number 106189
UPC 683328061894
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type 3-Piece
ADA Compliance n/a
