Bell & GossettSKU: 1060881

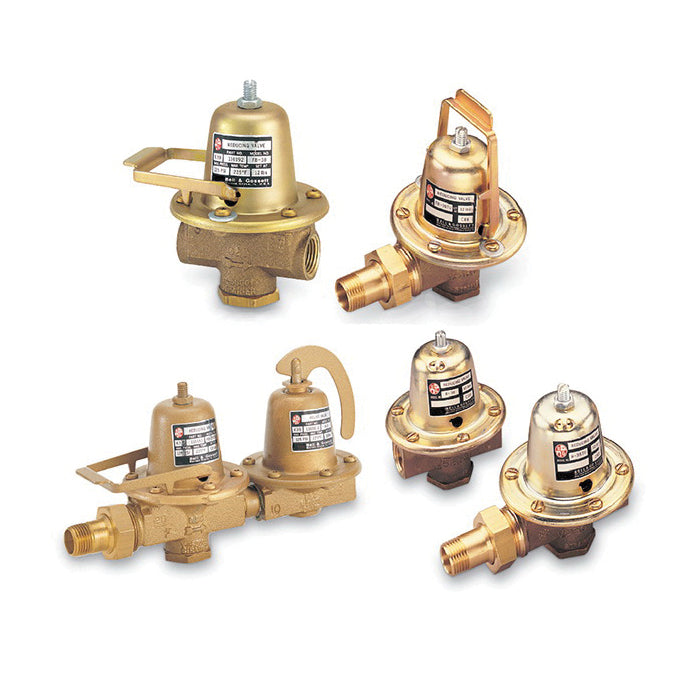

Bell & Gossett 110192LF Pressure Reducing Valve

$115.37
In stock (8)

Bell & Gossett Pressure Reducing Valve, 1/2 in Nominal, NPT, 10 to 25 psig, 225 deg F, 5.5 to 6 gpm, Brass Body, Brass Trim, 3-1/16 in W x 4-7/8 in H

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Fast fill feature reduces start-up time and labor
  • Low inlet pressure check valve help prevent loss of system pressure if the supply water drops below system pressure
  • Convenient cleanable strainer is designed to prevent dirt and sediment from entering the system
  • Union connection available with 1/2 in male NPT thread and 1/2 in female sweat tail-piece for fast, flexible system connection
  • Brass body construction is highly resistant to corrosion-ideal for water systems
  • Lead-free brass body/construction is ideal for potable water systems
  • Contains less than 0.25% lead by weight on wetted surfaces
  • 12 psig factory setting and 125 psig inlet pressure
  • Construction: Wetted parts- cast lead free brass body, EPT with special insert diaphragm, EPDM check valve, lead free brass seat, lead free brass with EPDM insert stem, lead free brass valve plate, strainer and strainer nut, Non-wetted parts- steel
  • Maximum flow 5-1/2 to 6 gpm at 125 psig inlet pressure
Specifications
Manufacturer Part Number 110192LF
UPC 683328101927
Overall Dimensions 10-1/8 in W x 4 in D x 5-1/2 in H
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
