Carlin Combustion TechnologySKU: 67345

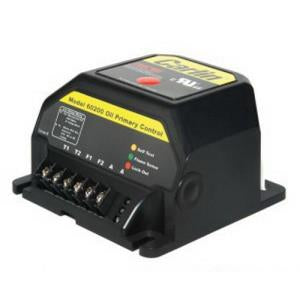

Carlin 6020002S CAD Cell Oil Burner Primary Control, 120V, 15/15/15 Timing

$90.21
In stock (29)

The Carlin 6020002S oil burner primary control provides interrupted-duty ignition and CAD cell flame monitoring for compatible oil heating systems. It features a 15-second pre-purge, 15-second trial for ignition and 15-second post-purge. Diagnostic LEDs simplify troubleshooting, while alarm contacts and built-in reset protection support burner monitoring and service.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • 15/15/15 timing: Fixed 15-second pre-purge, trial for ignition and post-purge.
  • Interrupted ignition: Turns off the igniter after flame is established.
  • Flame failure response: Features recycling operation and a 1.3-second flame failure response time.
  • Reset protection: Enters latch-up after three consecutive lockouts.
  • Diagnostic LEDs: Help technicians identify operating status and troubleshoot problems.
  • Alarm contacts: Rated for 24V AC/DC, 2 amps.
  • Control compatibility: Works with compatible thermostats and aquastats.
  • Electrical ratings: 120V AC, 60 Hz, 9 VA input; motor load rated 10 FLA/60 LRA
Specifications
Manufacturer Part Number 6020002S
UPC 86764111268
Overall Dimensions n/a
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals n/a
