Dial® 76141 60A Non-Fusible Surge-Guard Pullout Disconnect

$94.87
In stock (24)

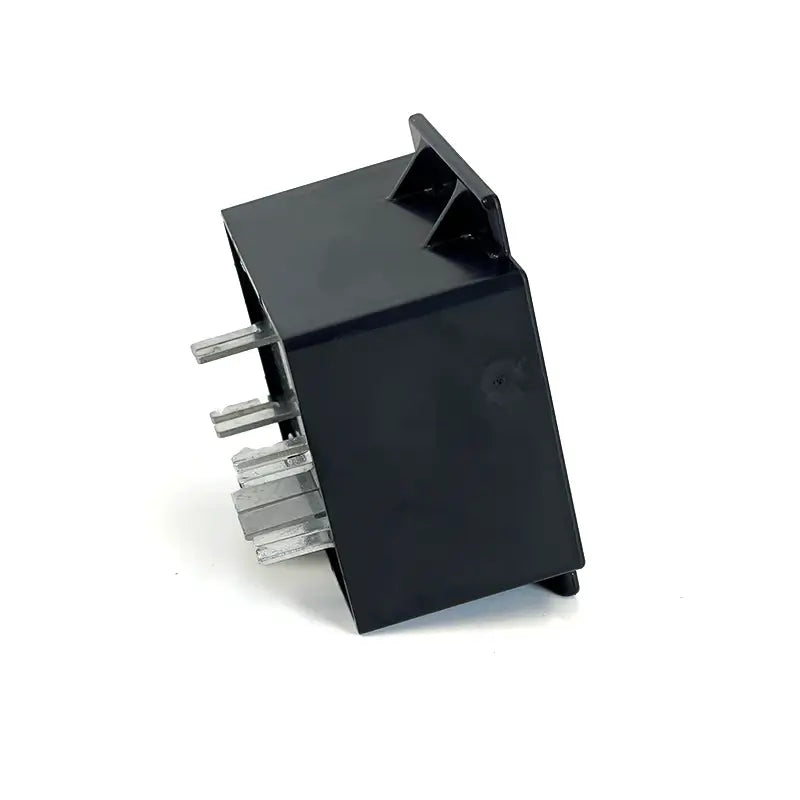

The Dial® 76141 Surge-Guard combines a 60-amp non-fusible AC disconnect and Type 2 surge protective device in one convenient pullout assembly. Designed for 120/240-volt single-phase systems, it installs like a traditional disconnect without requiring additional wiring for surge protection.

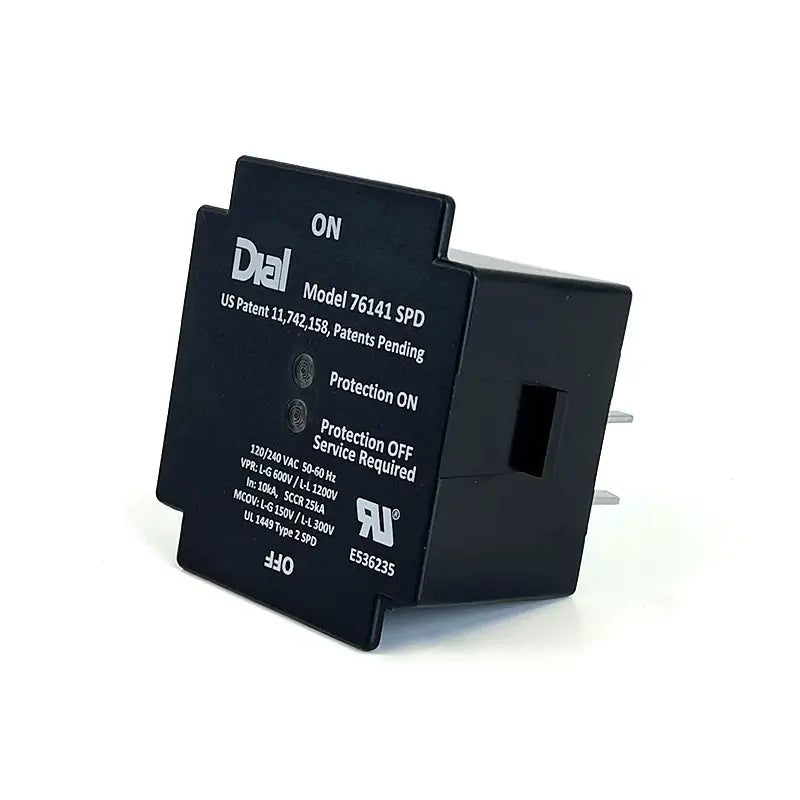

The integrated SPD is safely housed inside the disconnect, helping protect connected equipment against damaging transient voltage surges. Red and green LED indicators are visible through the front window, providing quick confirmation of the SPD’s operating status without opening the enclosure.

Built for outdoor service, the side-opening NEMA 3R metallic enclosure features anti-UV powder-coated steel construction for resistance to rain, sleet and prolonged sun exposure. The removable pullout can be easily disconnected and reinstalled during routine HVAC service.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Combines a 60-amp non-fusible disconnect and surge protector
  • Integrated Type 2 surge protective device
  • Designed for 120/240 VAC single-phase systems
  • Installs like a standard AC disconnect
  • No additional wiring required for SPD functionality
  • Removable pullout simplifies routine equipment service
  • Fully protected SPD is housed inside the disconnect
  • Red and green LEDs provide clear surge-protection status
  • Front window allows status checks without opening the enclosure
  • 25kA short-circuit current rating
  • 10kA nominal discharge current
  • NEMA 3R enclosure resists rain and sleet
  • Anti-UV powder-coated steel construction
  • Side-opening metallic enclosure
Specifications
Manufacturer Part Number 76141
UPC 26529761413
Overall Dimensions n/a
Material n/a
Domestic or Import Import
End Style n/a
Type n/a
ADA Compliance n/a
Warning Professional Installation Required
Standards and Approvals UL and UL 1449 listed
