Field Controls 5in Vent DamperField Controls 5in Vent Damper
Field Controls 5in Vent Damper
Field ControlsSKU: 473216

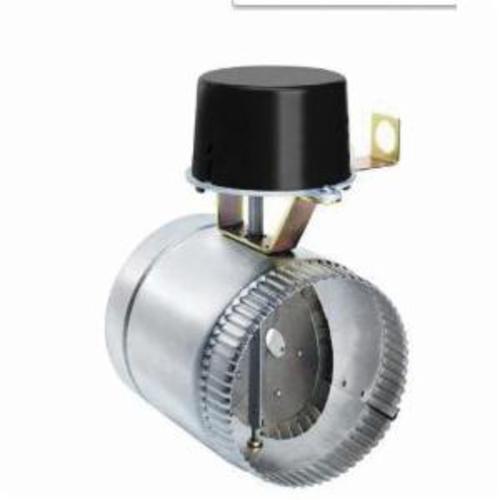

Field Controls 5in Automatic Vent Damper GVD-5PL

$178.63
In stock (27)

Keep conditioned air where it belongs. The Field Controls Vent Damper works automatically to allow natural draft during appliance operation while preventing residual appliance heat and conditioned air from escaping during off cycles. It also prevents the infiltration of cold air during down drafts, protecting against energy loss year-round.

Installed in the vent pipe after the draft hood or barometric damper, the unit remains closed during off cycles. When there's a call for heat, the motor energizes and rotates the damper 90 degrees to the open position — a process that takes about 15 seconds. Once fully open, the burner is allowed to fire and flue gases pass freely through the vent. When the thermostat is satisfied, the burner stops and the damper automatically closes.

Note: This item does not come with a wiring harness. A compatible harness — such as the GVD-UWK, 8' Harness w/ Conduit (Universal) — must be purchased separately for a complete, working installation.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Works automatically to allow natural draft during appliance operation while preventing residual appliance heat and conditioned air from escaping during off cycles
  • Also prevents the infiltration of cold air during down drafts
  • Made of stainless steel and available in 8 sizes, 4 through 10 in and 12 in
  • Stainless steel construction provides superior corrosion resistance
  • Damper operation, power opens in 15 sec, power closes in 15 sec, power is off at damper motor when it is at rest
  • Hold open switch allows damper to be placed in an open position and taken out of service to assist with trouble shooting appliance problems
  • Keyed wiring harness connector plug installs only one way, preventing incorrect wiring connection
Specifications
Manufacturer Part Number 46487001
UPC 90747576159
Overall Dimensions 14-1/16 in W x 7-5/16 in D x 4-1/4 in H
Material n/a
Domestic or Import Domestic
End Style n/a
Type n/a
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals n/a
