Field ControlsSKU: 473214

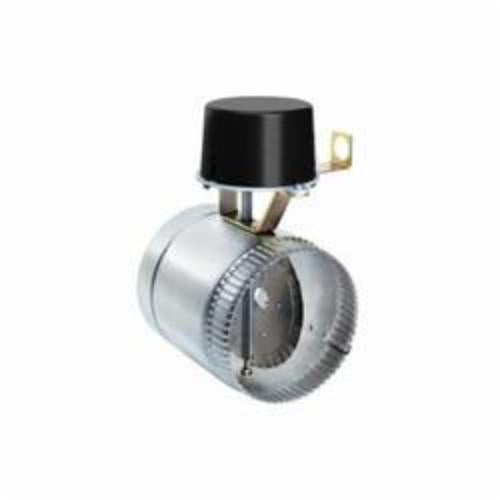

Field Controls GVD-4PL Automatic Gas Vent Damper

$205.85
In stock (6)

Field Controls Gas Vent Damper, Automatic, Series: GVD, 24 VDC, 60 Hz, 4 in Damper, Round, 6-1/16 in L x 8-7/8 in W

Shipping policy

Orders placed by 2:00pm EST will ship same day. All orders ship via UPS/USPS/Fedex Ground.

More Details

Product overview
  • Dual safety switches allow the burner to fire only when the damper is in the open position
  • This unit will not interfere with existing appliance safety controls, when properly installed
  • Operates with all 24 VAC, 60 HZ intermittent ignition and standing pilot ignition systems
  • Stainless steel construction provides superior corrosion resistance
  • Damper operation, power opens in 15 sec, power closes in 15 sec, power is off at damper motor when it is at rest
  • Hold open switch allows damper to be placed in an open position and taken out of service to assist with trouble shooting appliance problems
  • Keyed wiring harness connector plug installs only one way, preventing incorrect wiring connection
  • Improves gas boiler efficiency
Specifications
Manufacturer Part Number GVD-4PL
UPC 90747575152
Overall Dimensions 3-3/8 in Dia
Material n/a
Domestic or Import n/a
End Style n/a
Type Automatic
ADA Compliance n/a
