HartellSKU: 83338

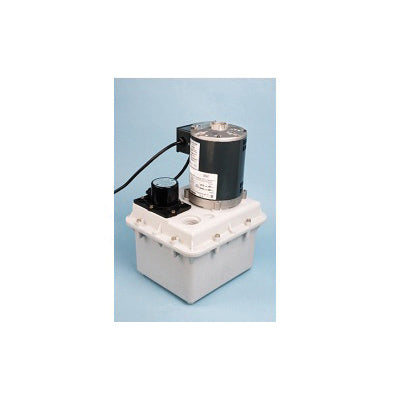

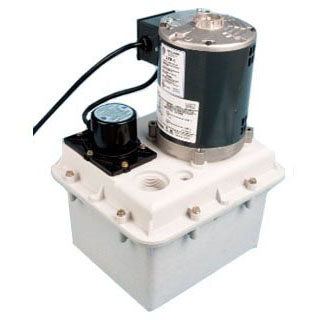

Hartell LTP-1 Laundry Tray Pump

$605.96
In stock (43)

The Hartell LTP-1 is a medium-capacity laundry tray pump engineered for applications where fixtures sit below the main drain line. Features a 1-1/2 in inlet and 1 in outlet, 1/4 hp motor running at 1725 rpm on 115V power. Delivers 13 ft maximum head and 13 ft suction lift capacity. Polypropylene construction handles temperatures up to 130°F, making it ideal for laundry rooms and wet bars requiring reliable drainage solutions.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Suds proof reservoir
  • Unitized construction
  • Structural foam polypropylene
  • Fits under utility sinks reservoir
  • No main stack vent connection required
  • Simple installation saves time
  • 8 ft cord and plug
  • Sealed switch assembly
  • Fits inside 24in base cabinets
  • Allows sink installation without breaking concrete
  • Medium capacity reservoir
  • 2 gal reservoir capacity
Specifications
Manufacturer Part Number LTP-1
UPC 684056003064
Overall Dimensions 17 in H x 10 in W x 12 in D
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning n/a
Standards and Approvals NSPC 11.7.9
