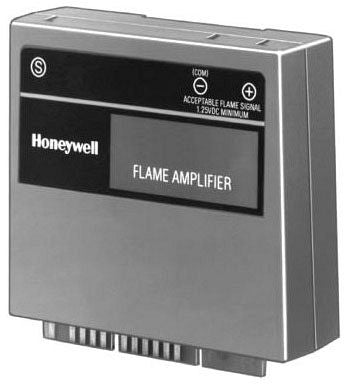

Honeywell Home R7849B1013 UV Flame AmplifierHoneywell Home R7849B1013 UV Flame Amplifier
Honeywell Home R7849B1013 UV Flame AmplifierHoneywell Home R7849B1013 UV Flame Amplifier
Honeywell Home R7849B1013 UV Flame Amplifier
Honeywell Home R7849B1013 UV Flame Amplifier
Honeywell HomeSKU: 1272060

Honeywell Home R7849B1013 UV Flame Amplifier

$411.24 Sold out

Solid state amplifier that detects flame signals and works with Honeywell 7800 Series relay modules. Plug-in design for straightforward installation in heating systems requiring flame verification. Essential component for safe burner operation and system reliability.

Shipping policy

Orders placed by 2:00pm EST will ship same day, except on holidays.

More Details

Product overview
  • Flame failure response time of 0.8 or 3.0 seconds.
  • Flame signal strength ranges from 0.0 to 5.0 Vdc.
  • Plug into 7800 relay module through printed circuit board edge connector keyed for proper orientation.
  • Flame signal test jacks to measure amplifier flame signal voltage.
  • Color-coded labels identify flame detection type. Dynamic Self-Check Amplifier test the detectors and all electronic components in the flame detection system 7800 SERIES relay module locks out on safety shutdown with flame detection system failure.
  • Compatible with existing Honeywell flame detectors (order separately).
  • Type: Ultraviolet
  • Flame Failure Response Time (sec): 0.8 sec or 1.0 sec
  • Self Checking: Ampli-Check
  • Use With Primary Safety Control: 7800 SERIES Relay Modules
Specifications
Manufacturer Part Number R7849B1013U
UPC 85267078214
Overall Dimensions 5-5/8 in H x 2 in W x 2-1/4 in D
Material n/a
Domestic or Import n/a
End Style n/a
Type n/a
ADA Compliance n/a
Warning Professional installation required
Standards and Approvals n/a
